H-21033-B Double-acting Thrust Tapered Roller Bearing Brass Cage

🔍

H-21033-B

Bore Diameter:180 mm

Outside Diameter:280 mm

Width:90 mm

Weight:22 kg

Min. Order:1 Piece

The H-21033-B Thrust angular contact ball bearings are mainly suitable for applications requiring high speed, low friction, and simultaneous axial and certain radial loads, such as fluid control valves, machine tool worktables and spindles, and rotary tables in the oil and gas drilling industry.

The H-21033-B bearing is a Double-acting thrust tapered roller bearing with an inner diameter of 180 mm , an outer diameter of 280 mm, a width of 90 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. its static axial rated load is approximately 2505064 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

180 mm

Outside Diameter:

280 mm

Thickness:

90 mm

Weight:

22 KG

Static load Capacity, axial:

2505064 N

Specifications:

Structure:

Thrust Tapered Roller Bearings

Number of Rows:

Two

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Cage Type:

brass cage

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Inch

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

H-21033-B bearings ( 180 mm x 280 mm x 90 mm) have the advantages of Composite load, high speed, high rigidity, and are therefore widely used in the rotary tables of oil and gas drilling rigs.

Part Number	H-21033-B
Design type	TTDFLK 1: Two single tapered outer races; One flat inner race; Inner-ring bore keyway (optional); One outer-ring spacer with oil slots
Bearing Type	Double-acting thrust tapered roller bearing
Interchangeable	TIMKEN H-21033-B
Manufacturer Part Code	H-21033-B
Cage	brass cage
Units	Inch
Tolerance class	PN (ABEC-1)
Thrust Race Number	Double
Cage type	MB
C_0a Axial Static [lbf]	563138
Ca1 Dynamic (1 Million Revolutions) [lbf]	170705
Ca90 Dynamic (90 Million Revolutions) [lbf]	44260

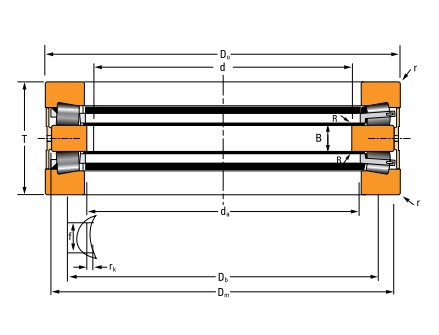

d φ Inside [inch]	7.0866
D_o [inch]	11.0236
D_m [inch]	10.3543
T Width [inch]	3.5433
B [inch]	0.7874
r Fillet Radius [inch]	0.0787
R (Max) Shaft Fillet Radius [inch]	0.0394
d_a Mounting dimensions [inch]	7.2835
D_b Mounting dimensions [inch]	10.0000
f Keyway Dimensions [inch]	0.7874
r_k Keyway Dimensions [inch]	0.1575
Weight [lb]	48.5012

The H-21033-B Thrust angular contact ball bearings are mainly composed of precision-ground steel balls, hardened and ground steel raceways, and a brass (or bronze) cage. Their core characteristic is their ability to simultaneously withstand axial thrust loads and a certain amount of radial load, and they also feature low friction, quiet operation, and suitability for high-speed operation.
