H-1685-C Heavy-duty Thrust Tapered Roller Bearing

🔍

H-1685-C

Bore Diameter:241.3 mm

Outside Diameter:488.899 mm

Width:152.4 mm

Weight:155.9 kg

Min. Order:1 Piece

The H-1685-C Thrust tapered roller bearings are suitable for heavy-duty, high-rigidity axial load applications. Classic applications include crane slewing mechanisms, oil drilling rig rotary tables, rolling mill pressing mechanisms, heavy machine tool spindles, ship propeller thrust shafts, and the axial positioning ends of large gearboxes.

The H-1685-C bearing is a Heavy-duty thrust tapered roller bearing with an inner diameter of 241.3 mm , an outer diameter of 488.899 mm, a width of 152.4 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic axial rated load is approximately 1458124 N, its static axial rated load is approximately 18894203 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

241.3 mm

Outside Diameter:

488.899 mm

Thickness:

152.4 mm

Weight:

155.9 KG

Dynamic load Capacity, axial:

1458124 N

Static load Capacity, axial:

18894203 N

Specifications:

Structure:

Thrust Tapered Roller Bearings

Number of Rows:

One

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Inch

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

H-1685-C bearings ( 241.3 mm x 488.899 mm x 152.4 mm) have the advantages of Withstanding extremely large and heavy unidirectional axial thrust, and are therefore widely used in the heavily loaded extruders, cone crushers.

Part Number	H-1685-C
Design type	TTHDFLSA: Heavy-duty thrust tapered roller bearing having one flat and one tapered raceway, where the flat raceway is made of two self-aligning washers (SA).
Bearing Type	Heavy-duty thrust tapered roller bearing
Interchangeable	TIMKEN H-1685-C
Manufacturer Part Code	H1685C
Units	Inch
Tolerance class	PN (ABEC-1)
C_0a Axial Static [lbf]	4247416
C_a Axial Dynamic [lbf]	327786
d φ Inside [inch]	9.5000
D Φ Outside [inch]	19.2480
T Width [inch]	6.0000
T₁ Cage Position [inch]	2.2500
r Fillet Radius [inch]	0.2402
d₁ [inch]	9.5311
D₁ [inch]	19.0000
E (Max) Shoulder Diameter Housing [inch]	11.0000
H (Min) Shoulder Diameter Shaft [inch]	17.0000
Weight [lb]	343.6971

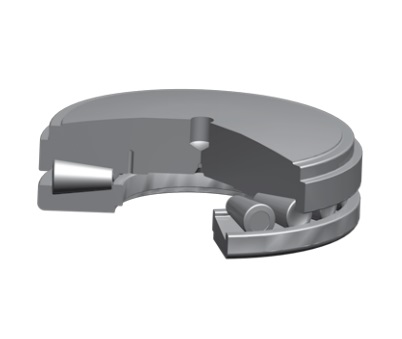

The H-1685-C Thrust tapered roller bearings mainly consist of a shaft ring, a housing ring, tapered rollers, and a cage. The raceways of the shaft ring and housing ring have a conical surface structure, and the rollers make line contact with the raceways. The cage is typically made of machined brass or stamped steel to ensure proper roller guidance.

Thrust tapered roller bearings can withstand enormous unidirectional axial loads and also possess a certain radial load-bearing capacity, far exceeding that of thrust ball bearings. They offer high rigidity, strong impact resistance, and precise axial positioning and preload can be achieved through the tapered roller structure.
