GYAE20RR Bore 20 Mm, Set Screw Locking Wide Inner Ring, Insert Ball Bearing
The GYAE20RR Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.
The GYAE20RR bearing is a Set Screw Locking Wide Inner Ring Insert Ball Bearing with an inner diameter of 20 mm , an outer diameter of 47 mm, a width of 27 mm. Bearing Steel rings, Bearing Steel rolling mlement. Its dynamic radial rated load is approximately 14200 N, its static radial rated load is approximately 6500 N. Double Narrow Shroud type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
GYAE20RR bearings ( 20 mm x 47 mm x 27 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | GYAE20RR |
| Bearing Type | Set Screw Locking Wide Inner Ring Insert Ball Bearing |
| Application Series | Standard |
| Interchangeable | FAFNIR GYAE20RR |
| Lubrication Type | Relubricatable |
| Locking Type | Set Screw |
| Set Screw Size | M6x1 |
| Angle between Set Screws | 90 ° |
| Outside Diameter Type | Cylindrical |
| Seal Type | Double Narrow Shroud |
| Units | Metric |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Radial Dynamic Capacity - Cr [lbf] | 3192 |
| Radial Static Capacity - C0r [lbf] | 1461 |
| Shaft Size | 20 mm |

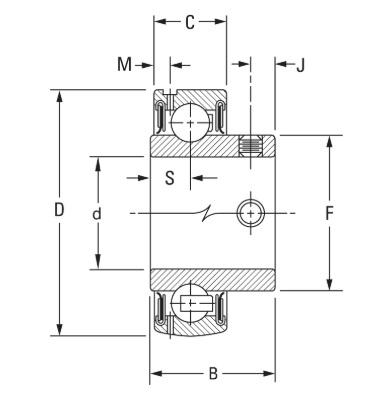

| Inside - d φ [inch] | 0.787 |
| Outside - D Φ [inch] | 1.850 |
| Inner Ring Width - B [inch] | 1.063 |
| Outer Ring Width - C [inch] | 0.551 |
| F [inch] | 1.142 |
| Chamfer - r [inch] | 0.024 |
| Center of Bearing from End - S [inch] | 0.349 |
| M [inch] | 0.120 |
| S1 [inch] | 0.714 |
| J [inch] | 0.237 |
The GYAE20RR Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
