GY1113KRRB Bore 46.0375 Mm, Set Screw Locking Wide Inner Ring, Insert Ball Bearing
The GY1113KRRB Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.
The GY1113KRRB bearing is a Set Screw Locking Wide Inner Ring Insert Ball Bearing with an inner diameter of 46.0375 mm , an outer diameter of 90 mm, a width of 51.59 mm. Bearing Steel rings, Bearing Steel rolling mlement. Its dynamic radial rated load is approximately 38900 N, its static radial rated load is approximately 23200 N. Double Shroud Seal type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
GY1113KRRB bearings ( 46.0375 mm x 90 mm x 51.59 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | GY1113KRRB |
| Bearing Type | Set Screw Locking Wide Inner Ring Insert Ball Bearing |
| Application Series | Industrial |
| Interchangeable | FAFNIR GY1113KRRB |
| Lubrication Type | Relubricatable |
| Locking Type | Set Screw |
| Set Screw Size | M10x1.5 |
| Angle between Set Screws | 90 ° |
| Outside Diameter Type | Spherical |
| Seal Type | Double Shroud Seal |
| Units | Inch |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Radial Dynamic Capacity - Cr [lbf] | 8744 |
| Radial Static Capacity - C0r [lbf] | 5215 |
| Shaft Size | 1.8125 inch |

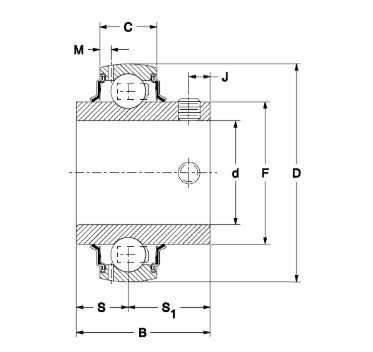

| Inside - d φ [inch] | 1.812 |
| Outside - D Φ [inch] | 3.543 |
| Inner Ring Width - B [inch] | 2.031 |
| Outer Ring Width - C [inch] | 0.866 |
| F [inch] | 2.474 |
| Chamfer - r [inch] | 0.024 |
| Center of Bearing from End - S [inch] | 0.750 |
| M [inch] | 0.185 |
| S1 [inch] | 1.281 |
| J [inch] | 0.394 |
The GY1113KRRB Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
