GE280AW Spherical Plain Thrust Bearings, Bore 280 Mm, Maintenance-free, Open Design
The GE280AW Axial spherical plain bearings are commonly used in applications requiring heavy axial loads and allowing for a certain degree of oscillation, such as hydraulic cylinder piston rod lug connections, screw mechanisms in heavy-duty lifting equipment, valve actuators, bridge bearings, and gate hoists in hydraulic engineering projects.
The GE280AW bearing is a Axial spherical plain bearings with an inner diameter of 280 mm , an outer diameter of 460 mm, a width of 110 mm. Hardened rolling bearing steel rings, Hardened rolling bearing steel rolling mlement. Its dynamic axial rated load is approximately 17100000 N, its static axial rated load is approximately 28600000 N. It uses CN standard radial clearance, Open (No seal) type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Interchange code: GE280-AW-XL
GE280AW bearings ( 280 mm x 460 mm x 110 mm) have the advantages of Specifically designed to withstand high-purity axial (thrust) loads and possessing self-aligning capability to compensate for installation angular deviations, and are therefore widely used in the Commonly used in the lug connections of hydraulic cylinder piston rods, slewing supports in heavy-duty lifting equipment, and thrust joints in bridge bearings.
| Part Number | GE280AW |
| Bearing Type | Axial spherical plain bearings |
| Interchangeable | FAGGE280AW |
| Description | Maintenance-free, Shaft locating washer curved surface, with hard chromium coating, Open design |
| Sliding contact surface | hard chromium/ELGOGLIDE |
| Series | GE..-AW |
| XL | XL = long life design |
| Seal | Open (No seal) |
| Radial internal clearance | CN |
| Equivalent | GE280-AW |
| Inner/Outer Ring Material | Hardened rolling bearing steel |
| Weight [kg] | 84.1 |
| Bore - d [mm] | 280 |
| d tolerance [mm] | -0.035 |
| Outside - D [mm] | 460 |
| D tolerance [mm] | -0.045 |
| Height - T [mm] | 110 |
| T tolerance [mm] | -0.7 |
| Width - B [mm] | 100 |
| B tolerance [mm] | -0.7 |
| Width - C [mm] | 85 |
| C tolerance [mm] | -0.7 |
| Ball diameter - dk [mm] | 480 |
| Outer eye - d2 [mm] | 445 |
| Front surface diameter of shaft washer - d3 [mm] | 366 |
| Bore diameter of housing washer - D1 [mm] | 337 |
| Plane Surface Spacing - S [mm] | 80 |
| Tilt angle - α [°] | 4 |
| r1 min [mm] | 3 |
| r2 min [mm] | 1 |
| Connection measure Inner ring - da max [mm] | 366 |
| Housing Connection Diameter - Da min [mm] | 355 |
| Dynamic Axial - Ca [N] | 17100000 |
| Static Axial - C0a [N] | 28600000 |

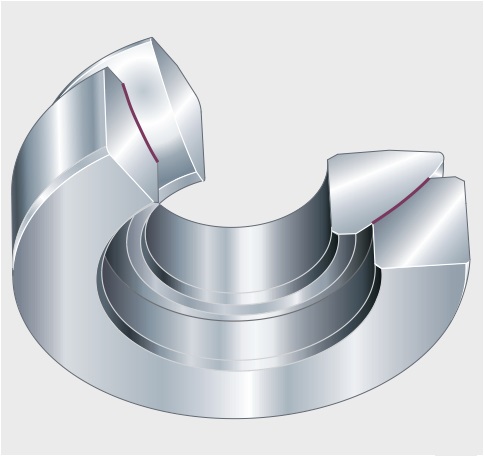

The GE280AW Axial spherical plain bearings consist of a shaft ring (inner ring) with a spherical convex surface, a seat ring (outer ring) with a spherical concave surface, and rolling elements or sliding pads. The sliding surface is spherical, resulting in a compact overall structure. The shaft ring and seat ring can be tilted relative to each other to achieve angular compensation.
Axial spherical plain bearings are specifically designed to withstand high-purity axial (thrust) loads, possess self-aligning capabilities to compensate for installation eccentricity and shaft deflection; they have a low coefficient of friction, are impact-resistant, insensitive to edge loads, and have a long service life.
