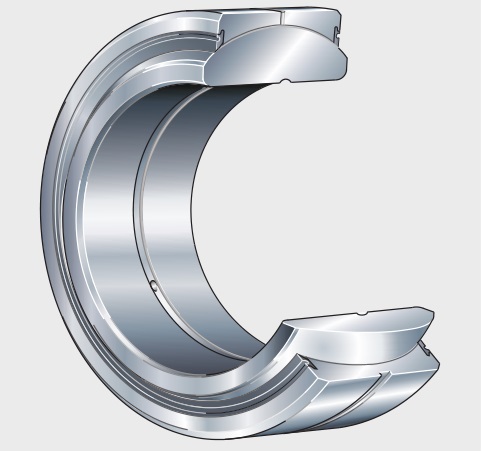

GE140DO-2RS Radial Spherical Plain Bearings, Bore 140 Mm, Requiring Maintenance, DIN ISO 12240-1, Dimension Series E, Sealed
The GE140DO-2RS Radial spherical plain bearings are widely used in hydraulic cylinder articulations of construction machinery (excavators, loaders), balance suspensions of heavy-duty trucks, linkage mechanisms of mining equipment, joints of agricultural machinery, and robot wrists—any application requiring swinging or tilting adjustments.
The GE140DO-2RS bearing is a Radial spherical plain bearings with an inner diameter of 140 mm , an outer diameter of 210 mm, a width of 90 mm. bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 1070000 N, its static radial rated load is approximately 5360000 N. It uses CN standard radial clearance, 2RS = Standard lip seals on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
GE140DO-2RS bearings ( 140 mm x 210 mm x 90 mm) have the advantages of Capable of withstanding heavy loads and impacts, and featuring automatic self-aligning to compensate for centering errors, and are therefore widely used in the joints of construction machinery (such as excavators and cranes), hydraulic cylinder hinges, and suspension systems of heavy vehicles.
| Part Number | GE140DO-2RS |
| Bearing Type | Radial spherical plain bearings |
| Interchangeable | FAGGE140DO-2RS |
| Description | Requiring maintenance, DIN ISO 12240-1, dimension series E, sealed |
| Sliding contact surface | Steel/steel |
| Series | GE..-DO-2RS |
| High performance | For highest load rating and lifetime demands |
| Seal | 2RS = Standard lip seals on both sides |
| Radial internal clearance | CN (0.085 - 0.165 mm) |
| Inner/Outer Ring Material | bearing steel |
| Weight [kg] | 11.2 |

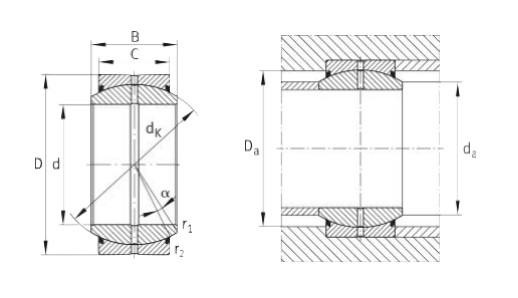

| Bore - d [mm] | 140 |
| d tolerance [mm] | -0.025 |
| Outside - D [mm] | 210 |
| D tolerance [mm] | -0.03 |
| Width - B [mm] | 90 |
| B tolerance [mm] | -0.25 |
| Width - C [mm] | 70 |
| C tolerance [mm] | -0.6 |
| Ball diameter - dk [mm] | 180 |
| Tilt angle - α [°] | 7 |
| r1 min [mm] | 1 |
| r2 min [mm] | 1 |
| Connection measure Inner ring - da max [mm] | 155.9 |
| Housing Connection Diameter - Da min [mm] | 173 |
| Dynamic Radial - Cr [N] | 1070000 |
| Static Radial - C0r [N] | 5360000 |
The GE140DO-2RS Radial spherical plain bearings consist of an inner ring with a spherical outer surface and an outer ring with a spherical inner surface, forming a sliding spherical pair. Some models have a self-lubricating gasket (such as PTFE fabric) on the inner surface of the outer ring or the outer surface of the inner ring.
Radial spherical plain bearings can withstand heavy radial loads and impact loads, automatically compensating for angular alignment errors between the shaft and the bearing bore. The steel-to-steel type is heat-resistant, contamination-resistant, self-lubricating, maintenance-free, has a low coefficient of friction, and a long service life.
