GE107-ZO-2RS-E Radial Spherical Plain Bearings, Bore 107.95 Mm, Requiring Maintenance, Inch Size, Sealed Design
The GE107-ZO-2RS-E Radial spherical plain bearings are widely used in hydraulic cylinder articulations of construction machinery (excavators, loaders), balance suspensions of heavy-duty trucks, linkage mechanisms of mining equipment, joints of agricultural machinery, and robot wrists—any application requiring swinging or tilting adjustments.
The GE107-ZO-2RS-E bearing is a Radial spherical plain bearings with an inner diameter of 107.95 mm , an outer diameter of 168.275 mm, a width of 94.463 mm. bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 878000 N, its static radial rated load is approximately 3990000 N. It uses CN standard radial clearance, 2RS = Lip seals on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
GE107-ZO-2RS-E bearings ( 107.95 mm x 168.275 mm x 94.463 mm) have the advantages of Capable of withstanding heavy loads and impacts, and featuring automatic self-aligning to compensate for centering errors, and are therefore widely used in the joints of construction machinery (such as excavators and cranes), hydraulic cylinder hinges, and suspension systems of heavy vehicles.
| Part Number | GE107-ZO-2RS-E |
| Bearing Type | Radial spherical plain bearings |
| Interchangeable | FAGGE107-ZO-2RS-E |
| Description | Requiring maintenance, inch size, sealed design |
| Sliding contact surface | steel/stee |
| Series | GE..-ZO-2RS-E |
| Seal | 2RS = Lip seals on both sides |
| Radial internal clearance | CN (0.13 - 0.23 mm) |
| Inner/Outer Ring Material | bearing steel |
| Weight [kg] | 8.4 |

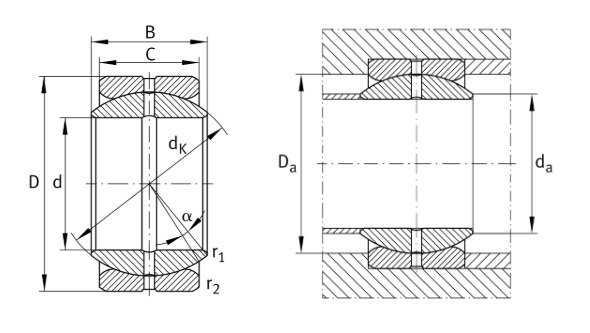

| Bore - d [mm] | 107.95 |
| d tolerance [mm] | 0/-0.02 |
| Outside - D [mm] | 168.275 |
| D tolerance [mm] | 0/-0.025 |
| Width - B [mm] | 94.463 |
| B tolerance [mm] | 0/0 |
| Width - C [mm] | 80.95 |
| C tolerance [mm] | 0/-0.05 |
| Ball diameter - dk [mm] | 155 |
| Tilt angle - α [°] | 6 |
| r1 min [mm] | 1 |
| r2 min [mm] | 1 |
| Connection measure Inner ring - da max [mm] | 122.8 |
| Housing Connection Diameter - Da min [mm] | 138 |
| Dynamic Radial - Cr [N] | 878000 |
| Static Radial - C0r [N] | 3990000 |
The GE107-ZO-2RS-E Radial spherical plain bearings consist of an inner ring with a spherical outer surface and an outer ring with a spherical inner surface, forming a sliding spherical pair. Some models have a self-lubricating gasket (such as PTFE fabric) on the inner surface of the outer ring or the outer surface of the inner ring.
Radial spherical plain bearings can withstand heavy radial loads and impact loads, automatically compensating for angular alignment errors between the shaft and the bearing bore. The steel-to-steel type is heat-resistant, contamination-resistant, self-lubricating, maintenance-free, has a low coefficient of friction, and a long service life.
