G1112KLLB Bore 44.45 Mm, Eccentric Locking Collar Wide Inner Ring, Insert Ball Bearing
The G1112KLLB Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units.
The G1112KLLB bearing is a Eccentric Locking Collar Wide Inner Ring Insert Ball Bearing with an inner diameter of 44.45 mm , an outer diameter of 85 mm, a width of 42.86 mm. Bearing Steel rings, Bearing Steel rolling mlement. Its dynamic radial rated load is approximately 36300 N, its static radial rated load is approximately 20500 N. Double Labyrinth Seal type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
G1112KLLB bearings ( 44.45 mm x 85 mm x 42.86 mm) have the advantages of Easy to install, self-aligning, maintenance-free., and are therefore widely used in the Conveying equipment, agricultural machinery, and fans.
| Part Number | G1112KLLB |
| Bearing Type | Eccentric Locking Collar Wide Inner Ring Insert Ball Bearing |
| Application Series | Industrial |
| Interchangeable | FAFNIR G1112KLLB |
| Lubrication Type | Relubricatable |
| Locking Type | Eccentric |
| Set Screw Size | 3/8-16 |
| Angle between Set Screws | 90 ° |
| Outside Diameter Type | Spherical |
| Seal Type | Double Labyrinth Seal |
| Units | inch |
| Number Of Balls | One |
| Number Of Set Screws | 2 |
| Radial Dynamic Capacity - Cr [lbf] | 8160 |
| Radial Static Capacity - C0r [lbf] | 4608 |
| Shaft Size | 1.75 inch |

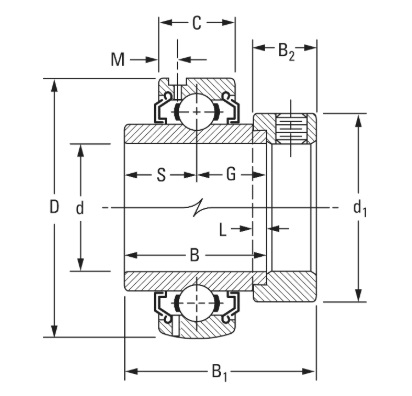

| Inside - d φ [inch] | 1.750 |
| Outside - D Φ [inch] | 3.346 |
| Inner Ring Width - B [inch] | 1.687 |
| Outer Ring Width - C [inch] | 0.866 |
| d1 [inch] | 2.500 |
| B1 [inch] | 2.220 |
| B2 [inch] | 0.720 |
| Chamfer - r [inch] | 0.024 |
| Center of Bearing from End - S [inch] | 0.843 |
| D1 [inch] | 2.500 |
| M [inch] | 0.179 |
The G1112KLLB Insert bearings primarily consist of a spherical outer ring, a wide inner ring, steel balls, a cage, and seals. The inner ring extends at one or both ends and is equipped with an eccentric sleeve or set screw for quick locking onto the shaft.
Insertion bearings are suitable for applications with limited installation space and requiring frequent maintenance. Classic applications include agricultural machinery, conveyor equipment, textile machinery, construction machinery, food processing equipment, and fan and air conditioning units. feature self-aligning capabilities, compensating for installation misalignment and shaft deflection. The wide inner ring design allows for direct installation onto the shaft without additional steps. They offer excellent sealing performance, a compact structure, and easy assembly and disassembly.
