Factory Manufacture 280.30.1375.013 Four Point Contact Slewing Ball Bearing

🔍

280.30.1375.013

Bore Diameter:1207 mm

Outside Diameter:1498 mm

Width:90 mm

Weight:186 kg

Reference FOB Price:US100 ~ 800 / Piece

Min. Order:1 Piece

The 280.30.1375.013 bearing is a four point contact slewing ball bearing with an inner diameter of 1207 mm , an outer diameter of 1498 mm, a width of 90 mm. It typically uses P0, P6, P5, P4, P2 grade precision tolerances and features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

1207 mm

Outside Diameter:

1498 mm

Thickness:

90 mm

Weight:

186 KG

Outer Ring Width:

Inner Ring Width:

Limiting speed (Oil rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Demensions:

1498*1207*90

Brand:

LYMC

Precision Rating:

P0, P6, P5, P4, P2

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

non gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Quality Control:

iso9001, QC report

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Detailed description

factory manufacture 280.30.1375.013 four point contact slewing ball bearing

Model no.:280.30.1375.013

structure:four point contact slewing ball bearing

gear option:non gear

material:42crmo/50mn/custom

DL(ball track diameter):1355mm

weight:186kgs

Da(outer diameter, outer ring):1498mm

Di(inner diameter, inner ring):1207mm

H(overall height):90mm

La(external bolt circle diameter):1460mm

Li(internal bolt circle diameter):1245mm

Na(number of holes, outer ring):42-φ22

ni(number of holes, inner ring):42-φ22

bearing clearance:

axial a. radial:≥0 to 0.07mm

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Certificated has 3.1,3.2,ABS,CCS.Our team with technical and full experience in the bearing industry. And with a worldwide network, allows us to resolve any bearing issue for you. LYMC bearings are the perfect alternative to the most common and well-known brands.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

More type we manufacture:

280.30.0975.013

280.30.1075.013

280.30.1175.013

280.30.1275.013

280.30.1375.013

280.30.1475.013

Any interests or inquiry, please contact us freely~

Share this product to:

Let more people see your product

How can you buy Factory Manufacture 280.30.1375.013 Four Point Contact Slewing Ball Bearing on the Internet?
High quality 280.30.1375.013 ( 186 kg Mass, ID: 1207 mm OD: 1498 mm WD: 90 mm , single row Rows , P0, P6, P5, P4, P2 Accuracy Class , 42CrMo/50Mn/45#/custom Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 280.30.1375.013. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- LYMC 280.30.1100.013 four point contact slewing ball bearing export
- LYMC 280.30.1100.013 four point contact slewing ball bearing export Model no.:280.30.1100.013 structure:four point contact
- Untoothed slewing ball bearing 010.75.3150 turntable ring
- Untoothed slewing ball bearing 010.75.3150 turntable ring Model no.:010.75.3150 structure:single row slewing ball bearing gear

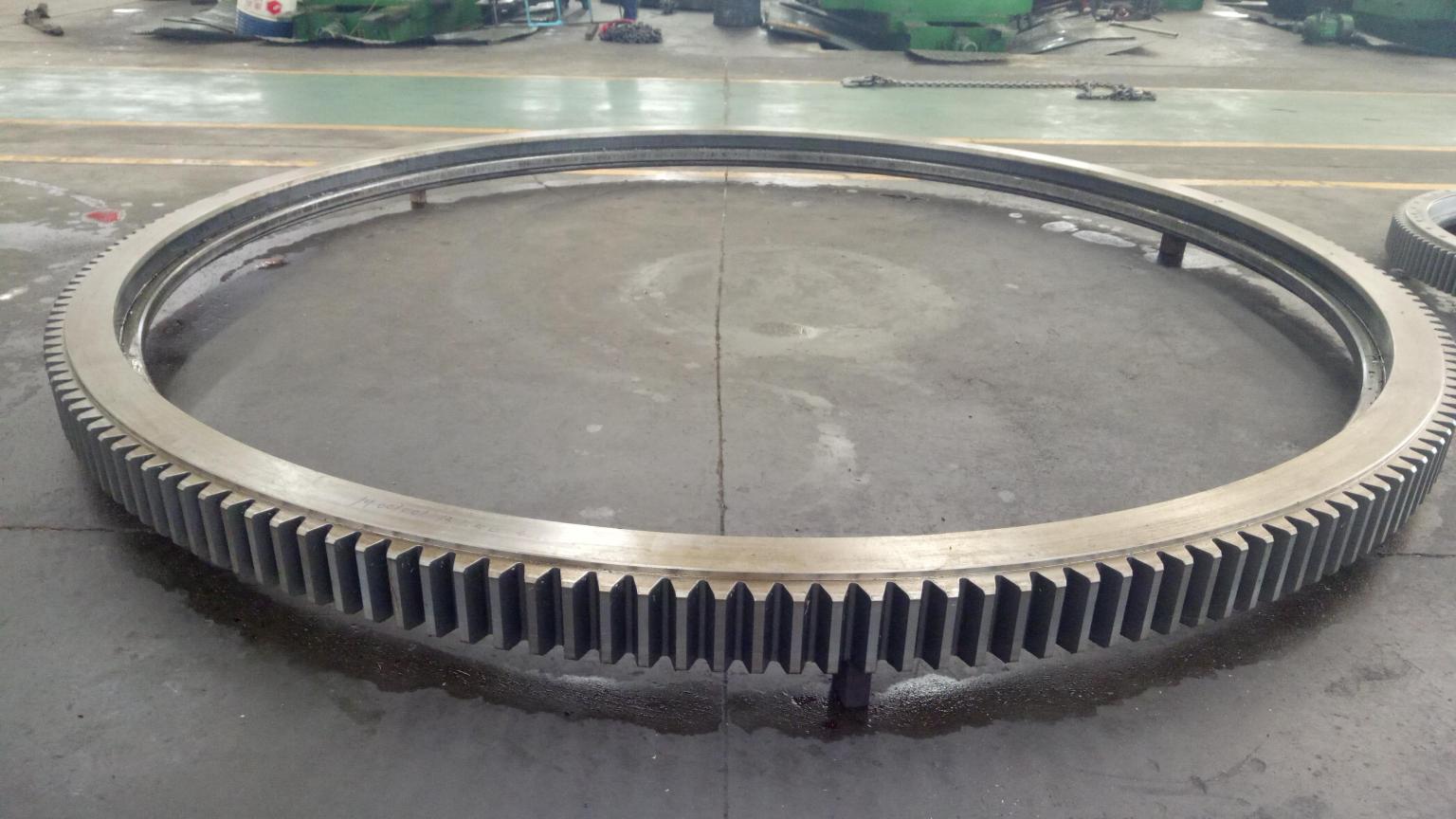

- OEM/ODM EB1.25.0855.200-1STPN swivel ball bearing ring with one row
