F-803679.24048-B Special Spherical Roller Bearings With Cylindrical Bore For Light Section Lines, With Loose Fit On The Roll Journal

🔍

F-803679.24048-B

Bore Diameter:240 mm

Outside Diameter:360 mm

Width:118 mm

Weight:43.6 kg

Min. Order:1 Piece

The F-803679.24048-B Double-row spherical roller bearings are suitable for heavy-load, impact, and eccentric conditions. Classic applications include vibrating screen exciters, crushers, fans, paper machine press rolls, mining conveyor equipment, and marine propulsion shafts.

The F-803679.24048-B bearing is a Special spherical roller bearings With cylindrical bore for light section lines, with loose fit on the roll journal with an inner diameter of 240 mm , an outer diameter of 360 mm, a width of 118 mm. GCr15, GCr15SiMn, SUJ2 rings, GCr15, SUJ2 rolling mlement. Its dynamic radial rated load is approximately 1499939 N, its static radial rated load is approximately 2899943 N. It uses CN standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

240 mm

Outside Diameter:

360 mm

Thickness:

118 mm

Weight:

43.6 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

1499939 N

Static load Capacity, Radial (Cor):

2899943 N

Fatigue Load Limit, Radial:

156920 N

Specifications:

Structure:

Spherical Roller Bearings

Number of Rows:

Radial Clearance Trade No.:

Bearing Material:

GCr15, GCr15SiMn, SUJ2

Cage Type:

Solid brass cage

Rolling Mlement Material:

GCr15, SUJ2

Bore Type:

Z = Cylindrical bore

Operating Temperature:

-30 to +200 °C

System of Measurement:

Metric

Series:

F-80..-B

Rolling Element:

symmetrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

10 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

F-803679.24048-B bearings ( 240 mm x 360 mm x 118 mm) have the advantages of Self-aligning, high load-bearing capacity, and impact resistant, and are therefore widely used in the Mining machinery, metallurgical equipment, papermaking machinery, vibrating screens, wind turbines, and large industrial gearboxes.

Part Number	F-803679.24048-B

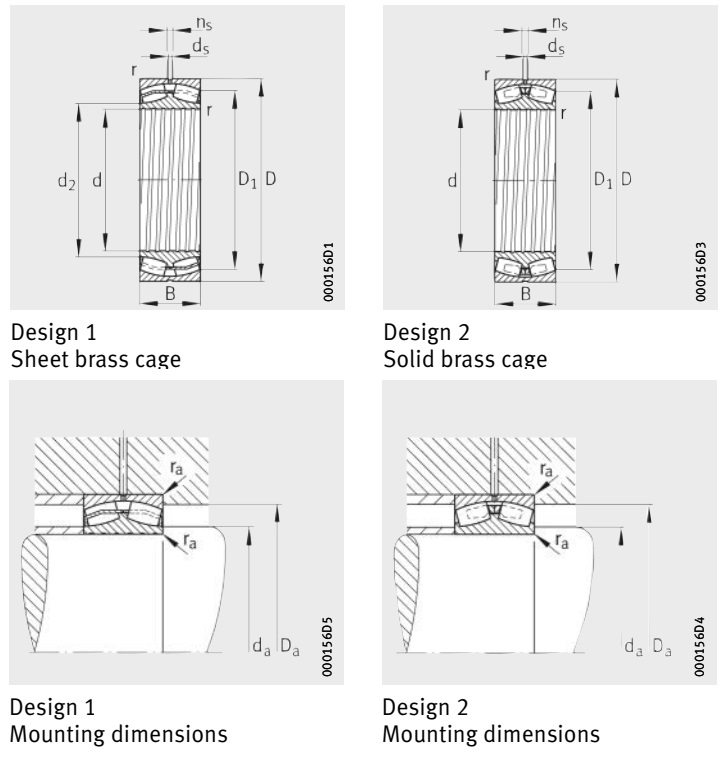

Design drawing	2
Bore Type	Z = Cylindrical bore
RIC	CN
Row	2
Bearing Type	Special spherical roller bearings With cylindrical bore for light section lines, with loose fit on the roll journal
Cage	Solid brass cage
Measurement	Metric
d φ Inside [inch]	9.449
D Φ Outside [inch]	14.173
B Width [inch]	4.646
Weight [kg]	43.6
r(min.) Chamfer [inch]	0.118
D₁ [inch]	12.555
d_s [inch]	0.248
n_s [inch]	0.480
C_r Radial Dynamic [lbf]	337186
C_0r Radial static [lbf]	651907
C_ur Radial Fatigue [lbf]	35275
Temperature - T(min)[°C]	-30
Temperature - T(max)[°C]	+200
Mounting dimensions
d_a(min.) [inch]	9.937
D_a(max.) [inch]	13.685
r_a(max.) [mm]	43.6
Calculation coefficient
e	0.32
Y₀	2.06
Y₁	2.1
Y₂	3.13

The F-803679.24048-B Double-row spherical roller bearings mainly consist of an inner ring, an outer ring, two rows of spherical rollers, a cage, and seals. The outer ring raceway has a spherical structure, while the inner ring has a double-row raceway. The rollers and raceways are logarithmically curved. The cage is typically made of stamped steel or machined brass.

Double-row spherical roller bearings possess excellent self-aligning properties, compensating for shaft deflection, installation errors, and misalignment. They can simultaneously withstand radial loads and bidirectional axial loads, exhibiting extremely high load-bearing capacity and strong impact resistance. Furthermore, the internal clearance can be optimized for vibration conditions, effectively reducing frictional temperature rise.
