F-803489.KL Deep Groove Ball Bearings, Single Row
The F-803489.KL Single-row deep groove ball bearings are widely used in various rotating machinery, such as: electric motors (general-purpose motors, household appliances), automotive wheel hubs, industrial gearboxes, agricultural machinery, pumps and compressors, conveying equipment, and power tools.
The F-803489.KL bearing is a Deep groove ball bearings, Single row with an inner diameter of 460 mm , an outer diameter of 679 mm, a width of 100 mm. GCr15SiMn rings, Its dynamic radial rated load is approximately 584939 N, its static radial rated load is approximately 1059945 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
F-803489.KL bearings ( 460 mm x 679 mm x 100 mm) have the advantages of simple structure, ability to withstand radial and bidirectional axial loads, low friction, and high speed, it is suitable for high-speed, low-noise applications, and are therefore widely used in the Motors, home appliances, automobiles, pumps, compressors, conveying equipment and general industrial machinery.
| Part Number | F-803489.KL |
| Reference From | FAG F-803489.KL |
| Bearing Type | Deep groove ball bearings, Single row |
| Series | F-..KL |
| Sealing | Open |
| Cage | JN = Stamping steel cage |
| Weight [lb] | 277.780 |
| Cr Radial Dynamic [lbf] | 131494 |
| C0r Radial static [lbf] | 238275 |
| Cur Radial Fatigue [lbf] | 6062 |
| nG Limiting speed [rpm] | 1884 |
| Operating temperature - T(min) [°C] | -30 |
| Operating temperature - T(max) [°C] | 200 |
| d φ Inside [inch] | 18.110 |
| D Φ Outside [inch] | 26.732 |
| B Width [inch] | 3.937 |
| r(min.) [inch] | 0.236 |
| D1 [inch] | 24.118 |
| d1 [inch] | 20.815 |
| Mounting dimensions | |
| da(min.) [inch] | 19.016 |
| Da(max.) [inch] | 25.827 |
| ra(max.) [inch] | 0.197 |
| Coefficient - F0 [inch] | 16 |

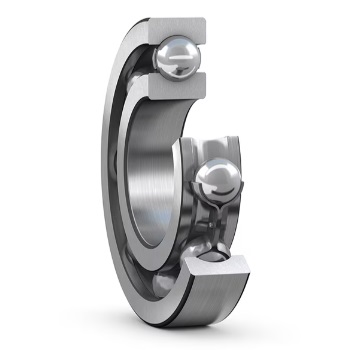

The F-803489.KL Single-row deep groove ball bearings mainly consist of an inner ring, outer ring, steel balls, and a cage. The raceways are deep grooves, with the steel balls making four-point contact with the raceways. The inner and outer rings can be separable or integrated. They are available in various forms, including open, with dust covers, and with seals.
Single-row deep groove ball bearings have a simple structure and are the most widely used. They can simultaneously withstand radial loads and bidirectional axial loads, making them suitable for high-speed operation. They have a low coefficient of friction, low noise, and are easy to install and maintain. Versions with seals or dust covers effectively prevent contaminant intrusion and are suitable for various operating conditions.
