F-801656.KL Deep Groove Ball Bearings, Single Row , With Retaining Slot
The F-801656.KL Single-row deep groove ball bearings are widely used in various rotating machinery, such as: electric motors (general-purpose motors, household appliances), automotive wheel hubs, industrial gearboxes, agricultural machinery, pumps and compressors, conveying equipment, and power tools.
The F-801656.KL bearing is a Deep groove ball bearings, Single row , With retaining slot with an inner diameter of 230 mm , an outer diameter of 329.5 mm, a width of 40 mm. GCr15SiMn rings, Its dynamic radial rated load is approximately 199962 N, its static radial rated load is approximately 239932 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
F-801656.KL bearings ( 230 mm x 329.5 mm x 40 mm) have the advantages of simple structure, ability to withstand radial and bidirectional axial loads, low friction, and high speed, it is suitable for high-speed, low-noise applications, and are therefore widely used in the Motors, home appliances, automobiles, pumps, compressors, conveying equipment and general industrial machinery.
| Part Number | F-801656.KL |
| Reference From | FAG F-801656.KL |
| Bearing Type | Deep groove ball bearings, Single row , With retaining slot |
| Series | F-..KL |
| Sealing | Open |
| Cage | JN = Stamping steel cage |
| Weight [lb] | 25.353 |
| Cr Radial Dynamic [lbf] | 44951 |
| C0r Radial static [lbf] | 53936 |
| Cur Radial Fatigue [lbf] | 1881 |
| nG Limiting speed [rpm] | 4288 |
| Operating temperature - T(min) [°C] | -30 |
| Operating temperature - T(max) [°C] | 200 |

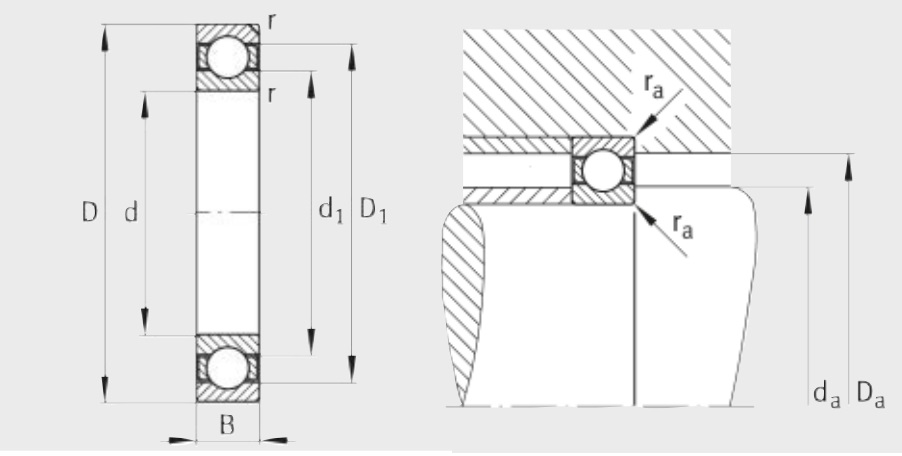

| d φ Inside [inch] | 9.055 |
| D Φ Outside [inch] | 12.972 |
| B Width [inch] | 1.575 |
| r(min.) [inch] | 0.083 |
| D1 [inch] | 11.736 |
| d1 [inch] | 10.346 |
| Mounting dimensions | |
| da(min.) [inch] | 9.449 |
| Da(max.) [inch] | 12.559 |
| ra(max.) [inch] | 0.083 |
| Coefficient - F0 [inch] | 16.3 |
The F-801656.KL Single-row deep groove ball bearings mainly consist of an inner ring, outer ring, steel balls, and a cage. The raceways are deep grooves, with the steel balls making four-point contact with the raceways. The inner and outer rings can be separable or integrated. They are available in various forms, including open, with dust covers, and with seals.
Single-row deep groove ball bearings have a simple structure and are the most widely used. They can simultaneously withstand radial loads and bidirectional axial loads, making them suitable for high-speed operation. They have a low coefficient of friction, low noise, and are easy to install and maintain. Versions with seals or dust covers effectively prevent contaminant intrusion and are suitable for various operating conditions.
