External Gear E.505.20.00.B Slewing Ring Bearing Price

🔍

E.505.20.00.B

Bore Diameter:342 mm

Outside Diameter:503.3 mm

Width:56 mm

Reference FOB Price:US400 ~ 1000 / Piece

Min. Order:1 Piece

The E.505.20.00.B bearing is a four point contact ball bearing with an inner diameter of 342 mm , an outer diameter of 503.3 mm, a width of 56 mm. It typically uses P0,P2,P4,P6 grade precision tolerances and features a Nylon/ steel /copper cage, GCr15 balls, GCr15 rings. It uses 0.1 standard radial clearance, open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: industrial equipment, foresty machine, mining and metallurgy.

Dimensions:

Inside Diameter:

342 mm

Outside Diameter:

503.3 mm

Thickness:

56 mm

Outer Ring Width:

44.5

Inner Ring Width:

44.5

Reference speed (Grease rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

Demensions:

503.3*342*56

Brand:

lymc

Radial Clearance Trade No.:

0.1

Precision Rating:

P0,P2,P4,P6

Bearing Material:

42CrMo/42CrMoQT/50Mn

Cage material:

Nylon/ steel /copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Gear Options:

external gear only

Transaction Information:

Transport Package:

wooden box

Service:

OEM

Shipping Ways:

sea, air

Country of Origin:

China

Quality Control:

QC report, ISO

Stock:

100 Piece

Production Capacity:

1000

Port:

shanghai, qingdao, ningbo

Payment term:

T/T, L/C

Delivery time:

30 days

Detailed description

External gear E.505.20.00.B slewing ring bearing price

Material:42CrMo/50Mn

Structure:External gear four point contact slewing ball bearing

Hardness:55~62HRC

Inner and outer ring modulation hardness:229-269HB

Dimensions:

Da:503.3mm

U:415.5mm

C:442.5mm

Di:342mm

Fixing holes:

La:455mm

na:20

Li:368mm

ni:24

Gear teeth:

P:495mm

m:5

z:99

Tooth force:

Fz nor:10.80KN

Fz max:21.60KN

Mass:

Weight:31kgs

if you have needs of this type slewing bearing, please contact us freely.

Share this product to:

Let more people see your product

How can you buy External Gear E.505.20.00.B Slewing Ring Bearing Price on the Internet?
High quality E.505.20.00.B ( ID: 342 mm OD: 503.3 mm WD: 56 mm , 1 Rows , 0.1 Radial Clearance , P0,P2,P4,P6 Accuracy Class , 42CrMo/42CrMoQT/50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. E.505.20.00.B. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- OEM 02-0820-00 slewing ring turntable gear ring manufacturer
- OEM 02-0820-00 slewing ring turntable gear ring manufacturer Bearing size:935*674*82mm Mounting hole:32-φ22,32-φ22

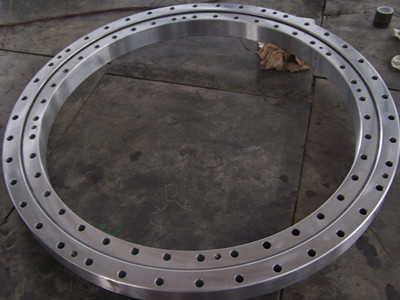

- Light weight steel ball bearing gear ring 03-0525-01 without gear
