EE158350/158442 Inch Size Tapered Roller Bearing Size 35x44.25x4.75 Inch
The EE158350/158442 bearing is a Tapered Roller Bearings with an inner diameter of 889 mm , an outer diameter of 1123.95 mm, a width of 120.65 mm. It typically uses Standard grade precision tolerances and features a Steel cage, Chrome Steel (Gcr15) rings. It primarily bears Radial and Thrust, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Construction, Transportation and Agricultural Machinery, Conveyor Plants, Hydraulic Jacks, and other industry.
EE158350/158442 Single Row Tapered Roller Bearing
Cone Part No.: EE158350
Cup Part No.: 158442
Size (Inner Dia x Outer Dia x Assembly Width): 35x44.25x4.75 inch (889x1123.95x120.65mm)
Mini Operating Temperature:-40 °C
Max Operating Temperature:120 °C

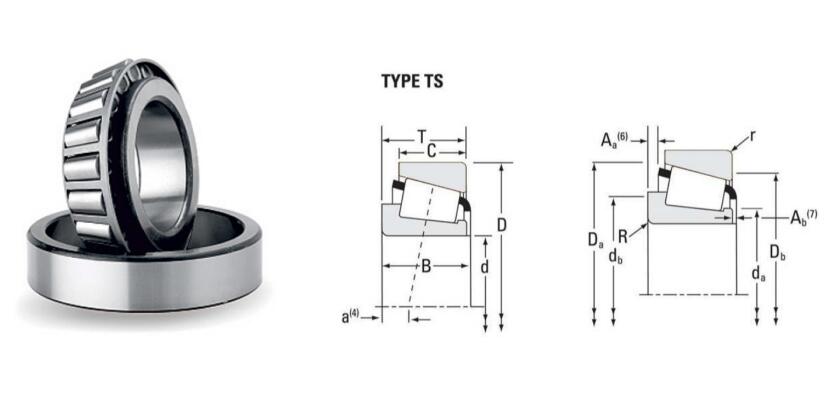

EE158350/158442 Tapered Roller Bearing (TS Type:Tapered Single) is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring: EE158350) assembly and the cup (outer ring: 158442). It is typically mounted in opposing pairs on a shaft.
|
EE158350/158442 Tapered Roller Bearing |
||
|
Type: |
TS (Tapered Single) |
|
|
Series: |
158000 |
|
|
Cone Part Number: |
EE158350 |
|
|
Cup Part Number: |
158442 |
|
|
Bearing Weight (kg) |
249.38 |
|
|
Main Dimensions: |
||
|
|
inch |
mm |
|
d-Bore: |
35 |
889 |
|
D-Cup Outer Diameter: |
44.25 |
1123.95 |
|
B-Cone Width: |
4.375 |
111.125 |
|
C-Cup Width: |
3 |
76.2 |
|
T-Bearing Width: |
4.75 |
120.65 |
|
Bearing Type: |
Roller |
|
|
Bearing Material: |
Chrome Steel |
|
|
Cage Material: |
Stamped Steel |
|
|
Precision: |
Standard Precision |
|
|
Load Direction: |
Combined Radial and Thrust |
|
|
Country of Origin: |
China |
|
|
HS Code: |
8482500090 |
|
Applicatioins: Gearing Systems and Transmissions, Thermal Power Coal Transporters, Port Equipment, Rubber and other Industrial applications, Machine Tool Spindles, Gear Reducer, Automotive Drive Axle, Aircraft wheels, Agricultural Wheels, Tensioning Roller, Raking Machine, Construction and Mining Equipment, Railroad Axle-box, etc.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
