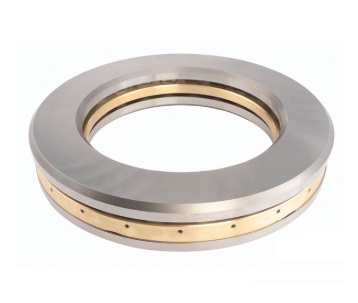

E-2408-A Thrust Cylindrical Roller Bearing, Window-type Steel Cage

🔍

E-2408-A

Bore Diameter:711.2 mm

Outside Diameter:914.4 mm

Width:114.3 mm

Weight:180 kg

Min. Order:1 Piece

The E-2408-A Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The E-2408-A bearing is a Thrust cylindrical roller bearing with an inner diameter of 711.2 mm , an outer diameter of 914.4 mm, a width of 114.3 mm. It typically uses PN (ABEC-1) grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic axial rated load is approximately 4274151 N, its static axial rated load is approximately 26304825 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

711.2 mm

Outside Diameter:

914.4 mm

Thickness:

114.3 mm

Weight:

180 KG

Dynamic load Capacity, axial:

4274151 N

Static load Capacity, axial:

26304825 N

Limiting speed (Oil rpm):

300

Specifications:

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

Two or Three

Precision Rating:

PN (ABEC-1)

Bearing Material:

bearing steel

Cage Type:

window-type steel cage

Rolling Mlement Material:

bearing steel

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 110 °C

System of Measurement:

Metric

Series:

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

E-2408-A bearings ( 711.2 mm x 914.4 mm x 114.3 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	E-2408-A
Design type	TP: Two or three cylindrical rollers per cage pocket
Bearing Type	Thrust cylindrical roller bearing
Interchangeable	TIMKEN E-2408-A
Manufacturer Part Code	E2408A
Series	TP
Cage	window-type steel cage
Units	Metric
Tolerance class	PN (ABEC-1)
C_0a Axial Static [lbf]	5913324
C_a Axial Dynamic [lbf]	960829
n_G Speed ratings (oil) [rpm]	300
d φ Inside [inch]	27.9999
D Φ Outside [inch]	35.9999
T Width [inch]	4.5000
T₁ Cage Position [inch]	1.1559
r Fillet Radius [inch]	0.0787
d₁ [inch]	28.0251
D₁ [inch]	35.9999
E (Max) Shoulder Diameter Housing [inch]	29.0393
H (Min) Shoulder Diameter Shaft [inch]	34.9881
Weight [lb]	396.8280

The E-2408-A Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
