Doosan DH320 Slewing Bearing

🔍

Doosan DH320

Bore Diameter:1236 mm

Outside Diameter:1526 mm

Width:110 mm

Weight:122 kg

The Doosan DH320 bearing is a slewing bearing with an inner diameter of 1236 mm , an outer diameter of 1526 mm, a width of 110 mm. It typically uses P0,P6,P5 grade precision tolerances and open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

1236 mm

Outside Diameter:

1526 mm

Thickness:

110 mm

Weight:

122 KG

Specifications:

Structure:

slew bearing

Brand:

LYJW

Precision Rating:

P0,P6,P5

Bearing Material:

42CrMo,50Mn

Seals Type:

open

Transaction Information:

Payment term:

T/T,L/C

Delivery time:

one day after receiving your payment

Detailed description

TYPE:Doosan DH320 Slewing Bearing

Outter Diameter : 1526mm

Inner Diameter :1236mm

Total Height:122mm

Outter Ring Height :87mm

Inner Ring Height :110mm

Outter Ring Hole:35-26

Inner Ring Hole: 40-M24*3 equal

Teeth No.:90pcs

Share this product to:

Let more people see your product

How can you buy Doosan DH320 Slewing Bearing on the Internet?
High quality Doosan DH320 ( 122 kg Mass, ID: 1236 mm OD: 1526 mm WD: 110 mm , P0,P6,P5 Accuracy Class , 42CrMo,50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. Doosan DH320. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- 08 0270 04 Slewing Ring Bearing/Swing Bearing
- 08 0270 04 Slewing Ring Bearing/Swing Bearing in stock.
- komatsu PC400-3 slewing bearing
- komatsu PC400-3 we can provide all type of komatsu bearing
- 110.50.3150 cross roller slewing bearing
- Single row cross slewing bearing 110.50.3150 is made from two rings,compact form,light
- Hitachi EX200-1 slewing bearing
- Hitachi EX200-1 slewing bearing we provide all type of Hitachi excavator slewing

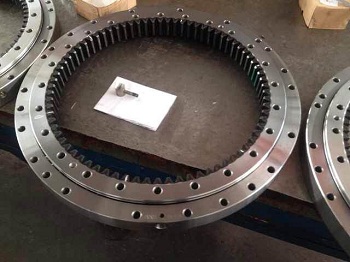

- 90-20 0541/0-07022 Slewing Bearing With The Size 684*434*56mm
