DAC4168W 43462-84A00 Wheel Hub Bearings 41X68X35/40mm For Suzuki Double Row Ball Bearings

🔍

DAC4168W

Bore Diameter:41 mm

Outside Diameter:68 mm

Width:35/40 mm

Reference FOB Price:US10 ~ 50 / Piece

Min. Order:1 Piece

The DAC4168W is a precision-engineered double-row angular contact ball bearing, specifically designed for automotive front wheel hub applications. With an inside diameter of 41mm, outside diameter of 68mm, and a width of 35/40mm (dual inner race design), this bearing is a direct OEM replacement for Suzuki vehicles.

The DAC4168W bearing is a Automotive Wheel Hub Bearings with an inner diameter of 41 mm , an outer diameter of 68 mm, a width of 35/40 mm. It typically uses P0 grade precision tolerances and features a Nylon cage, GCr15 chrome steel balls, It primarily bears Axial & Radial, It uses C3 standard radial clearance, Open type, No seals. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: Double row ball bearings

Application: Suzuki Wheel Part Bearing Replacement

Dimensions:

Inside Diameter:

41 mm

Outside Diameter:

68 mm

Thickness:

35/40 mm

Specifications:

Old Designations:

43462-84A00

HS Code:

8482102000

Structure:

Angular contact ball bearings

Number of Rows:

Double rows

Demensions:

41X68X35/40mm

Brand:

As required

Radial Clearance Trade No.:

Precision Rating:

Load Direction:

Axial & Radial

Cage Type:

Nylon cage

Cage material:

Nylon

Seals Type:

Open

Seal Material:

No seals

Ball Material:

GCr15 chrome steel

Bore Type:

Cylindrical

Series:

Angular contact ball bearings

Rolling Element:

Balls

Transaction Information:

Transport Package:

Standard packing

Service:

OEM service

Shipping Ways:

DHL / FedEx / UPS / TNT

Stock:

88 Piece

Port:

Shanghai / Guangzhou

Payment term:

PayPal / Western Union / T/T.100% in advanced

Delivery time:

3~4 workdays against payment

Detailed description

Product Introduction: DAC4168W Wheel Hub Bearing (41×68×35/40mm Double Row Ball Bearing)

Overview

The original equipment manufacturer (OEM) for Suzuki is KOYO, which produces this bearing under the part number DAC4168W HR4CS23. Its double-row design provides enhanced load capacity and rigidity, making it ideal for demanding wheel hub applications that require support for both radial and axial loads.

Key Specifications

Parameter	Value
Model	DAC4168W
Type	Double-row angular contact ball bearing
Inside Diameter (d)	41 mm
Outside Diameter (D)	68 mm
Width (B)	35 mm (outer width)
Inner Width	40 mm
Weight	Approx. 0.50 kg
Seals Type	Open (no seals)
Internal Clearance	C3
Precision Rating	P0
Cage Material	Nylon
Ball Material	GCr15 chrome steel
Load Direction	Axial & Radial
HS Code	8482102000

Note: Basic dynamic load rating (Cr) and basic static load rating (Cor) are not publicly specified for this exact model. For reference, similar-sized double-row angular contact ball bearings typically have Cr in the range of 35–45 kN and Cor in the range of 30–40 kN. Reference speed (grease) and limiting speed (oil) are also not publicly available; please contact our sales team for detailed technical data.

Features & Advantages

Double-row design – Provides superior load-carrying capacity and enhanced rigidity, ensuring stable wheel hub operation under heavy loads.
Dual inner race construction – Features two separable inner rings for easier installation and precise adjustment.
Open design – Allows for simplified inspection and maintenance.
C3 internal clearance – Designed for high rotational speeds and moderate-to-high operating temperatures, reducing the risk of premature failure.
Precision manufacturing – Manufactured to P0 precision grade (ABEC-1), ensuring reliable performance and long service life.
GCr15 chrome steel construction – Provides excellent wear resistance, corrosion resistance, and reliable performance under extreme conditions.
High load capacity – Engineered to handle significant radial and axial loads simultaneously.
Compliance with automotive safety standards – Manufactured to meet ISO/SAE specifications.

Applications

The DAC4168W is the OEM front wheel hub bearing for the following Suzuki models:

Model	Engine	Years
Suzuki Grand Vitara I (FT)	1.6 4x4	1998 – 2003
Suzuki Grand Vitara I (FT)	2.0 4x4	1998 – 2003
Suzuki Grand Vitara I (FT)	2.0 TD 4x4	1998 – 2003
Suzuki Grand Vitara I (FT)	2.5 V6 24V 4x4	1998 – 2003
Suzuki Vitara (ET, TA)	1.6 All-wheel Drive	1988 – 1998
Suzuki Vitara (ET, TA)	1.9 D All-wheel Drive	1995 – 1998
Suzuki Vitara (ET, TA)	2.0 TD All-wheel Drive	1994 – 1998

Additional applications:

Automotive front wheel hub bearing replacements
Off-road and SUV wheel hub assemblies

Cross-Reference & Interchange Numbers

Brand	Part Number
KOYO (OEM)	DAC4168W, DAC4168W HR4CS23
SUZUKI (OEM)	43462-84A00, 09269-41001
NSK	41KWD01G3
SKF	FW151, VKBA3219, VKBA3922
FAG	713623030
SNR	R177.12, R177.33
TIMKEN	517009
GM	96057729
DELCO	FW176

Ordering Information

Item	Details
Price	US$10.00 – 50.00/piece (FOB)
Minimum Order	1 PCS
Stock Availability	88 pieces
Payment Terms	PayPal / Western Union / T/T – 100% in advance
Delivery Time	3–4 working days upon payment confirmation
Shipping Methods	DHL / FedEx / UPS / TNT
Port of Loading	Shanghai / Guangzhou
Packaging	Standard export packing
OEM Service	Available upon request

Contacts:

Company	WUXI MUFA TECHNOLOGY CO.,LTD.
Sales	Alice Wong
Email	[email protected]
WhatsApp	+86 13771165326
WeChat	mufatec-bearings

Share this product to:

Let more people see your product

How can you buy DAC4168W 43462-84A00 Wheel Hub Bearings 41X68X35/40mm For Suzuki Double Row Ball Bearings on the Internet?
High quality DAC4168W ( ID: 41 mm OD: 68 mm WD: 35/40 mm , Angular contact ball bearings Series , Double rows Rows , C3 Radial Clearance , P0 Accuracy Class ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. DAC4168W. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- 513055 9036340066 Wheel Hub Bearings 40X74X42mm For Toyota Corolla Toyota Scion TC Toyota Matrix Double Row Ball Bearings
- 513055 9036340066 Wheel Hub Bearings 40X74X42mm For Toyota Corolla Toyota Scion
- 025-3AC3 auto wheel hub bearings cylindrical roller bearings 25*52*18mm
- MUFA TEC Bearings provides 025-3AC3 auto wheel hub bearings cylindrical roller bearings
- 43BWD06B Toyota Camry front wheel bearing double row ball bearing 43*82*45mm
- 43BWD06B Toyota Camry front wheel bearing double row ball bearing 43*82*45mm.Auto wheel
- DAC28580042 Suzuki Automotive Wheel Bearings 28X58X42mm
- DAC28580042 Suzuki Automotive Wheel Bearings 28X58X42mm, 69 pcs stock(stock in updating).
- TR081004 auto bearings taper roller bearings 40x95x36.25mm
- MUFA TEC Bearings provides TR081004 auto bearings taper roller bearings 40x95x36.25mm,38pcs in
- 6210X5N C3 BMW transfer case input shaft bearing deep groove ball bearing 50*90*20mm
- 6210X5N C3 BMW transfer case input shaft bearing deep groove ball bearing

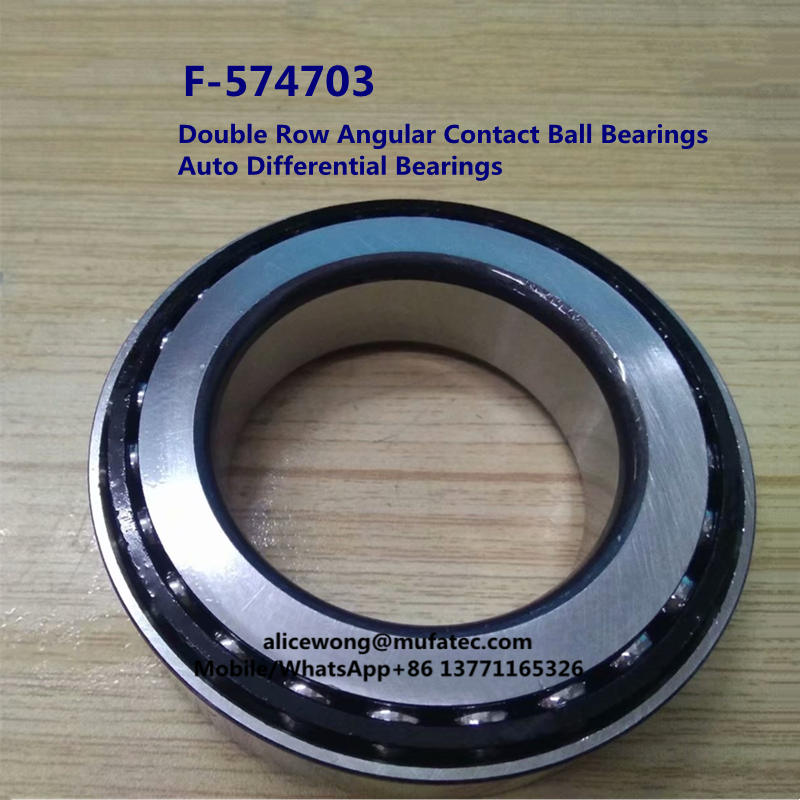

- F-574703 Automotive Bearings Nylon Cage Angular Contact Ball Bearings 55*90*23mm
