Custom Ball Bearing MTE-415 Slewing Ring Turntable Circle

🔍

MTE-415

Bore Diameter:16.250 inch

Outside Diameter:24.650 inch

Width:2.375 inch

Reference FOB Price:US400 ~ 800 / Piece

Min. Order:1 Piece

The MTE-415 bearing is a four point contact ball bearing with an inner diameter of 16.250 inch , an outer diameter of 24.650 inch, a width of 2.375 inch. It typically uses P0,P2,P4,P6 grade precision tolerances and features a Nylon/ steel /copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: industrial equipment, foresty machine, mining and metallurgy.

Dimensions:

Inside Diameter:

16.250 inch

Outside Diameter:

24.650 inch

Thickness:

2.375 inch

Outer Ring Width:

2.063

Inner Ring Width:

2.063

Reference speed (Grease rpm):

EP2

Specifications:

HS Code:

848210

Structure:

four point contact ball bearing

Number of Rows:

Demensions:

24.650*16.250*2.375

Brand:

lymc

Precision Rating:

P0,P2,P4,P6

Bearing Material:

42CrMo/42CrMoQT/50Mn

Cage material:

Nylon/ steel /copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

external gear only

Transaction Information:

Transport Package:

wooden box

Service:

OEM

Shipping Ways:

sea, air

Country of Origin:

China

Quality Control:

QC report, ISO

Stock:

100 Piece

Production Capacity:

1000

Port:

shanghai, qingdao, ningbo

Payment term:

T/T, L/C

Delivery time:

30 days

Detailed description

Custom ball bearing MTE-415 slewing ring turntable circle technical datas:

Material:42CrMo/50Mn/42CrMo4

Structure:four point contact slewing ball bearing

Ball material:Gcr15

Do:24.650

di:16.250

H:2.375

Ho/Hi:2.063

G:132Ibs

Lo:22.250

no:16

Bo:0.813

Li:17.750

ni:20

Bi:0.813

Tooth Form:SD

D2:24.250

GEAR DATA:

Pd:4

Z2:97

b2:2.022

Fz:(MAX GEAR TOOTH LOAD):10,420Ibs

Moment rating:159,200(ft-Ibs)

If you are insterested in Custom ball bearing MTE-415 slewing ring turntable circle more details, please contact us freely.

Share this product to:

Let more people see your product

How can you buy Custom Ball Bearing MTE-415 Slewing Ring Turntable Circle on the Internet?
High quality MTE-415 ( ID: 16.250 inch OD: 24.650 inch WD: 2.375 inch , 1 Rows , P0,P2,P4,P6 Accuracy Class , 42CrMo/42CrMoQT/50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. MTE-415. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- Factory swing circle non-gear teeth VLU200944 ball bearing ring with size 1048*834*56mm
- Factory swing circle non-gear teeth VLU200944 ball bearing ring with size 1048*834*56mm Material:42CrMo/50Mn/42CrMo4 Structure:four
- Custom 231.20.0900.503 slewing flange ball bearing with light load
- Custom 231.20.0900.503 slewing flange ball bearing with light load Da(outer diameter)(O.D.):1046.4mm Di:(inner diameter)(I.D.):834mm H(overall height):56mm
- Luoyang turntable HT10-42E1Z crane slewing ball bearing manufacture
- Luoyang turntable HT10-42E1Z crane slewing ball bearing manufacture Do(outer diameter):47.840in di(inner diameter):36.000in Total height:3.500in

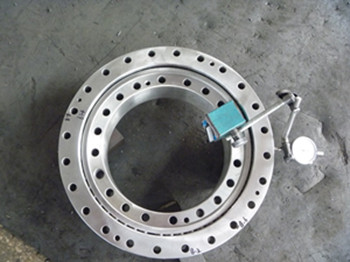

- Luoyang 23 0411 01 swing bearing gear ring spare parts replacement
