CRBS608VC1 Slim Type Crossed Roller Bearings Full Complement

🔍

CRBS608VC1

Bore Diameter:60 mm

Outside Diameter:76 mm

Width:8 mm

Weight:0.094 kg

Min. Order:1 Piece

The CRBS608VC1 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The CRBS608VC1 bearing is a Slim Type Crossed Roller Bearings Full complement with an inner diameter of 60 mm , an outer diameter of 76 mm, a width of 8 mm. It typically uses P0 (ISO Class NORMAL / ABEC-1) grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 7600 N, its static radial rated load is approximately 11700 N. It uses C1 standard radial clearance, Open type type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

60 mm

Outside Diameter:

76 mm

Thickness:

8 mm

Weight:

0.094 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

7600 N

Static load Capacity, Radial (Cor):

11700 N

Reference speed (Grease rpm):

735

Limiting speed (Oil rpm):

1103

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Radial Clearance Trade No.:

Precision Rating:

P0 (ISO Class NORMAL / ABEC-1)

Load Direction:

radial, thrust and moment

Bearing Material:

50Mn,42CrMo

Seals Type:

Open type

Rolling Mlement Material:

GCr15

Bore Type:

Cylindrical

Operating Temperature:

-20 to 120 °C

System of Measurement:

Metric

Series:

CRBS..V

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

30 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

CRBS608VC1 bearings ( 60 mm x 76 mm x 8 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

Part Number	CRBS608VC1
Bearing Type	Slim Type Crossed Roller Bearings Full complement
Mounting holes	No
Type	CRBS..V
Seal Type	Open type
Bore Type	Cylindrical
Rolling Element Type	cylindrical rollers
Oil holes	No
Manufacturer Part Code	CRBS 608 V C1
Load	radial, thrust and moment
Interchangeable	IKO CRBS608VC1
Units	Metric
Rows NO.	One
Rolling Element Material	GCr15
Inner/Outer Ring Material	50Mn,42CrMo
Lubrication	grease
Accuracy class	P0 (ISO Class NORMAL / ABEC-1)
Guidance of cylindrical roller	Full complement
Temperature - T(min) [°C]	-20
Temperature - T(max) [°C]	120

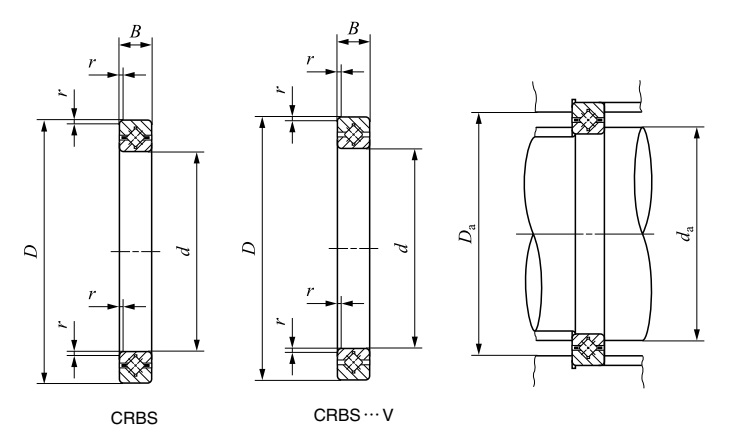

Shaft diameter [inch]	2.362
d φ Inside [inch]	2.362
D Φ Outside [inch]	2.992
B Width [inch]	0.315
r min Chamfer [inch]	0.016
da Mounting dimensions [inch]	2.520
Da Mounting dimensions [inch]	2.795
n_B Reference speed (grease) [r/min]	735
n_G Limiting speed (oil) [r/min]	1103
C_r Radial Dynamic [lbf]	1708
C_0r Radial Static [lbf]	2630
Internal Clearance	C1
Radial internal clearances - C1	min: 0 µm , max: 15 µm
m Bearing Weight [kg]	0.094

The CRBS608VC1 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
