CRBH 12025 A C1 P4 High Rigidity Crossed Roller Bearings Open Type With Separator

🔍

CRBH 12025 A C1 P4

Bore Diameter:120 mm

Outside Diameter:180 mm

Width:25 mm

Weight:2.62 kg

Min. Order:1 Piece

The CRBH 12025 A C1 P4 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The CRBH 12025 A C1 P4 bearing is a High Rigidity Crossed Roller Bearings Open type with separator with an inner diameter of 120 mm , an outer diameter of 180 mm, a width of 25 mm. It typically uses P4 (ISO Class 4 / ABEC-7) grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 73400 N, its static radial rated load is approximately 108000 N. It uses C1 standard radial clearance, Open type type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

120 mm

Outside Diameter:

180 mm

Thickness:

25 mm

Weight:

2.62 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

73400

Static load Capacity, Radial (Cor):

108000

Reference speed (Grease rpm):

500

Limiting speed (Oil rpm):

1000

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Radial Clearance Trade No.:

Precision Rating:

P4 (ISO Class 4 / ABEC-7)

Load Direction:

radial, thrust and moment

Bearing Material:

50Mn,42CrMo

Seals Type:

Open type

Rolling Mlement Material:

GCr15

Bore Type:

Cylindrical

Operating Temperature:

-20 to 120 °C

System of Measurement:

Metric

Series:

CRBH..A

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

30 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

CRBH 12025 A C1 P4 bearings ( 120 mm x 180 mm x 25 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

Part Number	CRBH 12025 A C1 P4
Bearing Type	High Rigidity Crossed Roller Bearings Open type with separator
Mounting holes	No
Type	CRBH..A
Seal Type	Open type
Bore Type	Cylindrical
Rolling Element Type	cylindrical rollers
Oil holes	Outer ring has an oil groove and two oil holes
Manufacturer Part Code	CRBH12025AC1P4
Load	radial, thrust and moment
Interchangeable	IKO CRBH 12025 A C1 P4
Units	Metric
Rows NO.	One
Rolling Element Material	GCr15
Inner/Outer Ring Material	50Mn,42CrMo
Lubrication	grease
Accuracy class	P4 (ISO Class 4 / ABEC-7)
Guidance of cylindrical roller	with separator
Temperature - T(min) [°C]	-20
Temperature - T(max) [°C]	120

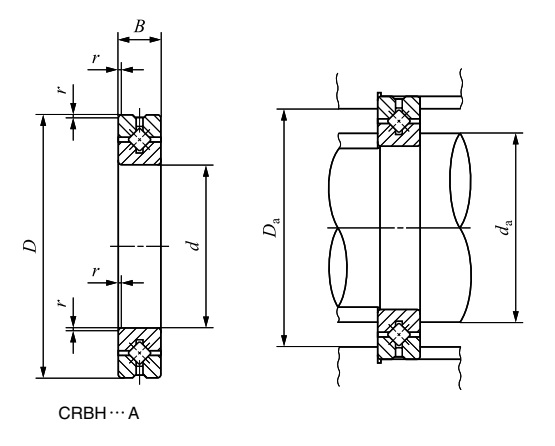

Shaft diameter [inch]	4.724
d φ Inside [inch]	4.724
D Φ Outside [inch]	7.087
B Width [inch]	0.984
r min Chamfer [inch]	0.039
da Mounting dimensions [inch]	5.197
Da Mounting dimensions [inch]	6.614
n_B Reference speed (grease) [r/min]	500
n_G Limiting speed (oil) [r/min]	1000
C_r Radial Dynamic [lbf]	16500
C_0r Radial Static [lbf]	24278
Internal Clearance	C1
Radial internal clearances - C1	min: 0 µm , max: 15 µm
m Bearing Weight [kg]	2.62

The CRBH 12025 A C1 P4 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
