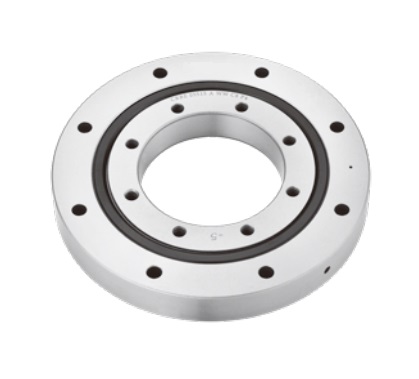

CRBE16035A Bore 160 Mm, High Rigidity With Mounting Holes (CRBE) Crossed Roller Bearings, Sealed And Open Type

🔍

CRBE16035A

Bore Diameter:160 mm

Outside Diameter:295 mm

Width:35 mm

Weight:11.98 kg

Min. Order:1 Piece

The CRBE16035A Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The CRBE16035A bearing is a High rigidity with mounting holes (CRBE) crossed roller bearings, sealed and open type with an inner diameter of 160 mm , an outer diameter of 295 mm, a width of 35 mm. It typically uses P4, P2 grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 102000 N, its static radial rated load is approximately 192300 N. Its dynamic axial rated load is approximately 226000 N, its static axial rated load is approximately 437000 N. It uses C1: Positive clearance; C8: Negative clearance standard radial clearance, WW: Double sides Sealed type; NN: Open type type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

160 mm

Outside Diameter:

295 mm

Thickness:

35 mm

Weight:

11.98 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

102000 N

Static load Capacity, Radial (Cor):

192300 N

Dynamic load Capacity, axial:

226000 N

Static load Capacity, axial:

437000 N

Reference speed (Grease rpm):

260

Limiting speed (Oil rpm):

340

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Radial Clearance Trade No.:

C1: Positive clearance; C8: Negative clearance

Precision Rating:

P4, P2

Load Direction:

radial, thrust and moment

Bearing Material:

50Mn,42CrMo

Seals Type:

WW: Double sides Sealed type; NN: Open type

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Bore Type:

Cylindrical

Operating Temperature:

-30 to 120 °C

System of Measurement:

Metric

Rolling Element:

Cylindrical Rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

30 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

CRBE16035A bearings ( 160 mm x 295 mm x 35 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

Part Number	CRBE16035A
Bearing Type	High rigidity with mounting holes (CRBE) crossed roller bearings, sealed and open type
Mounting Holes	A: With mounting screw holes (Thread holes on inner ring , sink holes on outer ring)
Design	High rigidity with mounting holes (an inner ring and an outer ring with mounting holes), both inner and outer ring rotation
Rolling Element Type	Cylindrical Rollers
Rows NO.	One
Manufacturer Part Code	CRBE 16035 A
Load	radial, thrust and moment
Seal symbol	WW: Double sides Sealed type; NN: Open type
Seal Material	NBR (Nitrile Butadiene Rubber)
Accuracy class	P4, P2
Temperature - T(min) [°C]	-30
Temperature - T(max) [°C]	120
Interchangeable	HIWIN CRBE16035A
Inner/Outer Ring Material	50Mn,42CrMo
Rolling Element Material	GCr15
Axial internal clearance	C1: Positive clearance; C8: Negative clearance
C8 [µm]	-10 (min), 0 (max)
C1 [µm]	2 (min), 20 (max)
d φ Inside [mm]	160
D Φ Outside [mm]	295
T,B Width [mm]	35
C min Chamfer [mm]	2
d_OH Oil Holes [mm]	6
C_r Radial Dynamic [N]	102000
C_0r Radial Static [N]	192300
C_a Dynamic Axial [N]	226000
C_0a Static Axial [N]	437000
m Weight [kg]	11.98
n_B Reference speed (grease) [r/min]	260
n_G Limiting speed (oil) [r/min]	340
Mounting dimensions - da [mm]	218
Mounting dimensions - Da [mm]	238
Td max Idling torque [Nm]	4.8
PCD₁ Inner rings [mm]	184
Inner rings mounting holes	12-M10 through
PCD₂ Outer rings [mm]	270
Outer rings mounting holes	12-φ11 through φ17.5 counter bore depth 10.8
Similar Model	CRBE16035A WW C1 P4 CRBE16035A NN C1 P4 CRBE16035A WW C8 P4 CRBE16035A NN C8 P4 CRBE16035A WW C1 P2 CRBE16035A NN C1 P2 CRBE16035A WW C8 P2 CRBE16035A NN C8 P2

The CRBE16035A Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
