CRBC 11020 U C1 Sealed Standard Crossed Roller Bearings With Cage
The CRBC 11020 U C1 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.
The CRBC 11020 U C1 bearing is a Sealed Standard Crossed Roller Bearings With cage with an inner diameter of 110 mm , an outer diameter of 160 mm, a width of 20 mm. It typically uses P0 (ISO Class NORMAL / ABEC-1) grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 33500 N, its static radial rated load is approximately 50700 N. It uses C1 standard radial clearance, U = One side sealed type, Special synthetic rubber. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
CRBC 11020 U C1 bearings ( 110 mm x 160 mm x 20 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.
| Part Number | CRBC 11020 U C1 |
| Bearing Type | Sealed Standard Crossed Roller Bearings With cage |
| Mounting holes | No |
| Type | CRBC..UU |
| Seal Type | U = One side sealed |
| Seal Material | Special synthetic rubber |
| Bore Type | Cylindrical |
| Rolling Element Type | cylindrical rollers |
| Oil holes | No |
| Manufacturer Part Code | CRBC11020UC1 |
| Load | radial, thrust and moment |
| Interchangeable | IKO CRBC 11020 U C1 |
| Units | Metric |
| Rows NO. | One |
| Rolling Element Material | GCr15 |
| Inner/Outer Ring Material | 50Mn,42CrMo |
| Lubrication | grease |
| Accuracy class | P0 (ISO Class NORMAL / ABEC-1) |
| Guidance of cylindrical roller | With cage |
| Temperature - T(min) [°C] | -20 |
| Temperature - T(max) [°C] | 120 |

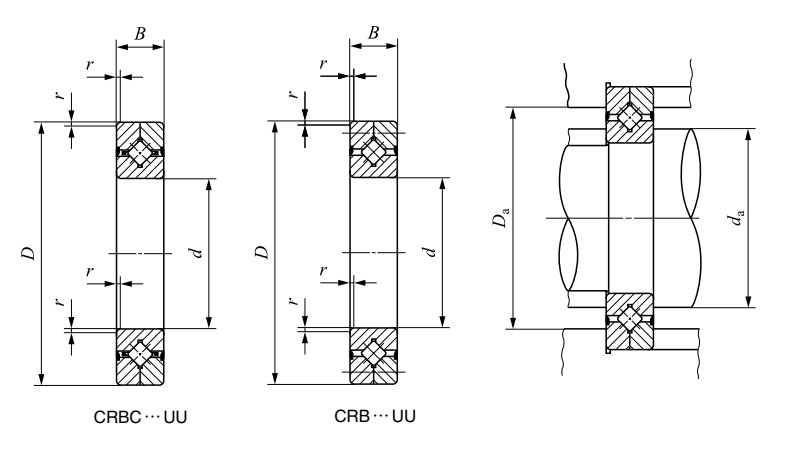

| Shaft diameter [inch] | 4.331 |
| d φ Inside [inch] | 4.331 |
| D Φ Outside [inch] | 6.299 |
| B Width [inch] | 0.787 |
| r min Chamfer [inch] | 0.039 |
| da Mounting dimensions [inch] | 4.646 |
| Da Mounting dimensions [inch] | 5.669 |
| nB Reference speed (grease) [r/min] | 444 |
| Cr Radial Dynamic [lbf] | 7530 |
| C0r Radial Static [lbf] | 11397 |
| Internal Clearance | C1 |
| Radial internal clearances - C1 | min: 0 µm , max: 15 µm |
| m Bearing Weight [kg] | 1.56 |
The CRBC 11020 U C1 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.
Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
