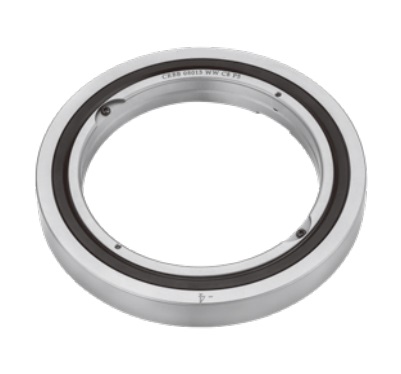

CRBB25040 Bore 250 Mm, Split Inner Ring Type (CRBB) Crossed Roller Bearings, Sealed And Open Type

🔍

CRBB25040

Bore Diameter:250 mm

Outside Diameter:355 mm

Width:40 mm

Weight:14.4 kg

Min. Order:1 Piece

The CRBB25040 Crossed roller bearings are suitable for high-precision, high-rigidity, and space-constrained rotary applications. Classic applications include industrial robot joints and positioners, CNC machine tool rotary tables and indexing heads, medical CT scanner rotating frames, radar antenna rotation mechanisms, precision measuring instruments, and aerospace simulation rotary tables.

The CRBB25040 bearing is a Split inner ring type (CRBB) crossed roller bearings, sealed and open type with an inner diameter of 250 mm , an outer diameter of 355 mm, a width of 40 mm. It typically uses P5, P4, P2, PD5 grade precision tolerances and 50Mn,42CrMo rings, GCr15 rolling mlement. It primarily bears radial, thrust and moment, Its dynamic radial rated load is approximately 207000 N, its static radial rated load is approximately 391800 N. Its dynamic axial rated load is approximately 460000 N, its static axial rated load is approximately 890000 N. It uses C1: Positive clearance; C8: Negative clearance standard radial clearance, WW: Double sides Sealed type; NN: Open type type, NBR (Nitrile Butadiene Rubber). together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

250 mm

Outside Diameter:

355 mm

Thickness:

40 mm

Weight:

14.4 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

207000 N

Static load Capacity, Radial (Cor):

391800 N

Dynamic load Capacity, axial:

460000 N

Static load Capacity, axial:

890000 N

Reference speed (Grease rpm):

200

Limiting speed (Oil rpm):

260

Specifications:

Structure:

Crossed Roller Bearings

Number of Rows:

One

Radial Clearance Trade No.:

C1: Positive clearance; C8: Negative clearance

Precision Rating:

P5, P4, P2, PD5

Load Direction:

radial, thrust and moment

Bearing Material:

50Mn,42CrMo

Seals Type:

WW: Double sides Sealed type; NN: Open type

Seal Material:

NBR (Nitrile Butadiene Rubber)

Rolling Mlement Material:

GCr15

Bore Type:

Cylindrical

Operating Temperature:

-30 to 120 °C

System of Measurement:

Metric

Rolling Element:

Cylindrical Rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

30 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

CRBB25040 bearings ( 250 mm x 355 mm x 40 mm) have the advantages of The rollers are arranged in a cross pattern, allowing them to withstand radial, axial, and overturning moments simultaneously. They offer high rigidity and rotational accuracy while compact and space-saving design, and easy installation, and are therefore widely used in the Industrial robots, CNC machine tools, medical equipment, precision measuring instruments and aerospace.

Part Number	CRBB25040
Bearing Type	Split inner ring type (CRBB) crossed roller bearings, sealed and open type
Mounting Holes	Without mounting holes
Design	Split inner ring (two inner semi-rings and an outer ring), outer ring rotation
Rolling Element Type	Cylindrical Rollers
Rows NO.	One
Manufacturer Part Code	CRBB 25040
Load	radial, thrust and moment
Seal symbol	WW: Double sides Sealed type; NN: Open type
Seal Material	NBR (Nitrile Butadiene Rubber)
Accuracy class	P5, P4, P2, PD5
Temperature - T(min) [°C]	-30
Temperature - T(max) [°C]	120
Interchangeable	HIWIN CRBB25040
Inner/Outer Ring Material	50Mn,42CrMo
Rolling Element Material	GCr15
Axial internal clearance	C1: Positive clearance; C8: Negative clearance
C8 [µm]	-10 (min), 0 (max)
C1 [µm]	2 (min), 20 (max)
d φ Inside [mm]	250
D Φ Outside [mm]	355
T,B Width [mm]	40
d_OH Oil Holes [mm]	4
C_r Radial Dynamic [N]	207000
C_0r Radial Static [N]	391800
C_a Dynamic Axial [N]	460000
C_0a Static Axial [N]	890000
m Weight [kg]	14.4
n_B Reference speed (grease) [r/min]	200
n_G Limiting speed (oil) [r/min]	260
Mounting dimensions - da [mm]	289
Mounting dimensions - du [mm]	275
Mounting dimensions - Da [mm]	311
Ca max Fillet Radius [mm]	2
Td max Idling torque [Nm]	12.8
Similar Model	CRBB25040 WW C1 P5 CRBB25040 NN C1 P5 CRBB25040 WW C8 P5 CRBB25040 NN C8 P5 CRBB25040 WW C1 P4 CRBB25040 NN C1 P4 CRBB25040 WW C8 P4 CRBB25040 NN C8 P4 CRBB25040 WW C1 P2 CRBB25040 NN C1 P2 CRBB25040 WW C8 P2 CRBB25040 NN C8 P2 CRBB25040 WW C1 PD5 CRBB25040 NN C1 PD5 CRBB25040 WW C8 PD5 CRBB25040 NN C8 PD5

The CRBB25040 Crossed roller bearings consist of inner and outer rings, cylindrical rollers, spacers, and seals. The rollers are arranged at 90° intervals within a V-shaped raceway, allowing for multi-directional load bearing even in a single row.

Crossed roller bearings can simultaneously withstand radial loads, bidirectional axial loads, and overturning moments. They possess extremely high rigidity and rotational accuracy, and their compact structure saves installation space, simplifying machine tool design.
