CM-5ET Rod End (Shaft Dia: 0.3125 Inch)
The CM-5ET bearing is a Rod Ends with an inner diameter of 0.3125 inch , together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Steering and shifting mechanisms, general purpose linkages, packaging equipment, and light-duty mechanical assemblies.
CM-5ET rod end, male threaded, right hand, corrosion resistant. Long service life, and smooth articulation.
Bore Diameter: 0.3125 Inch (7.938 mm)
Thread Size: 5/16-24 UNF-3A
Thread Direction: Right Hand
Rod End Type: Male
HS Code: 8482109000
|
Rod End |
||
|
Part Number |
CM-5ET |
|
|
Thread Type |
Right Hand |
|
|
Thread Configuration |
Male |
|
|
Size |
Inch |
mm |
|

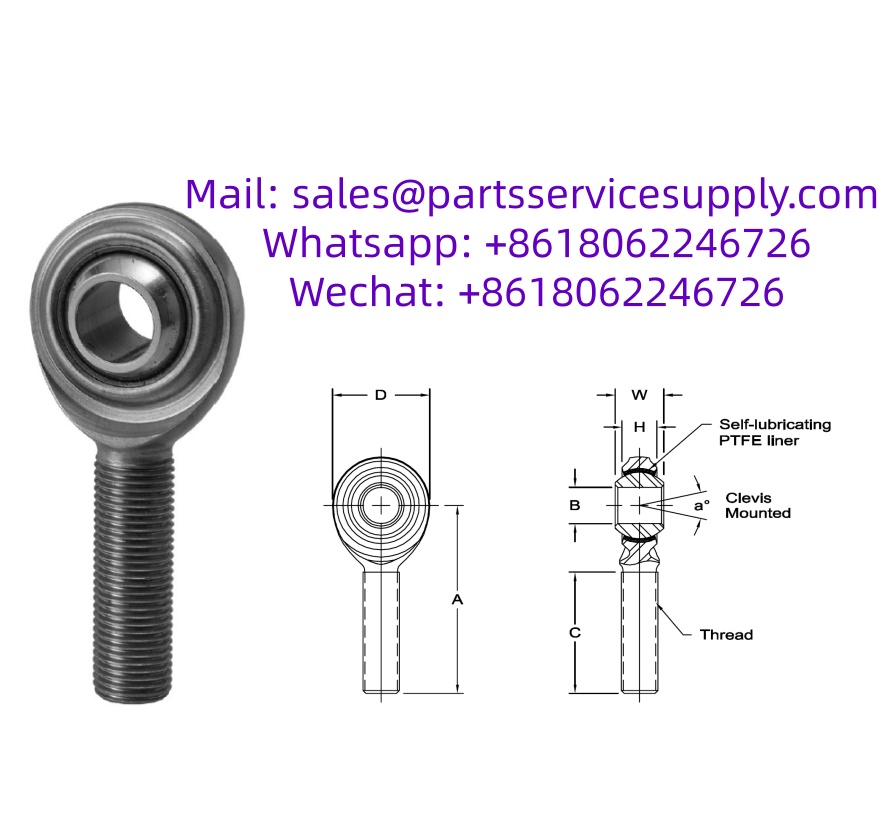

B - Ball Bore |
0.3125 |
7.938 |
|
W - Ball Width |
0.437 |
11.1 |
|
H - Head Width |
0.312 |
7.92 |
|
A - Base to Center |
1.875 |
47.63 |
|
D - Head Diameter |
0..875 |
22.23 |
|
Ball Diameter |
0.593 |
15.06 |
|
C - Thread Length |
1.25 |
31.75 |
|
Thread UNF-3A |
5/16-24 |
|
|
a° Misalignment Angle |
18 |
|
|
Ultimate Radial Static Load Capacity (Lbs) |
6,451 |
|
|
Approximate Brg. Weight (Grams) |
32 |
|
Body - 17-4 PH stainless steel - heat treated.
Ball - 440C stainless steel - heat treated - hard chrome plated (MFG. option).
Bushing – 17-4 PH stainless steel - heat treated - PTFE lined.
Studded configuration available upon request. Specify by adding suffix "S". Ex.: CM-8ETS.
Applications:
Automotive: Steering and shifting mechanisms
Industrial & Automation: General purpose linkages, packaging equipment, and light-duty mechanical assemblies.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
