CM-12ET Rod End (Shaft Dia: 0.75 Inch)

🔍

CM-12ET

Bore Diameter:0.75 inch

Min. Order:1 Piece

The CM-12ET bearing is a Rod Ends with an inner diameter of 0.75 inch , together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Steering and shifting mechanisms, general purpose linkages, packaging equipment, and light-duty mechanical assemblies.

Dimensions:

Inside Diameter:

0.75 inch

Specifications:

HS Code:

8482109000

Brand:

Neutral Product

Bearing Material:

Stainless Steel

Bore Type:

Cylindrical

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

10000 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

CM-12ET rod end, male threaded, right hand, corrosion resistant. Long service life, and smooth articulation.

Bore Diameter: 0.75 Inch (19.05 mm)

Thread Size: 3/4-16 UNF-3A

Thread Direction: Right Hand

Rod End Type: Male

HS Code: 8482109000

Rod End
Part Number	CM-12ET
Thread Type	Right Hand
Thread Configuration	Male

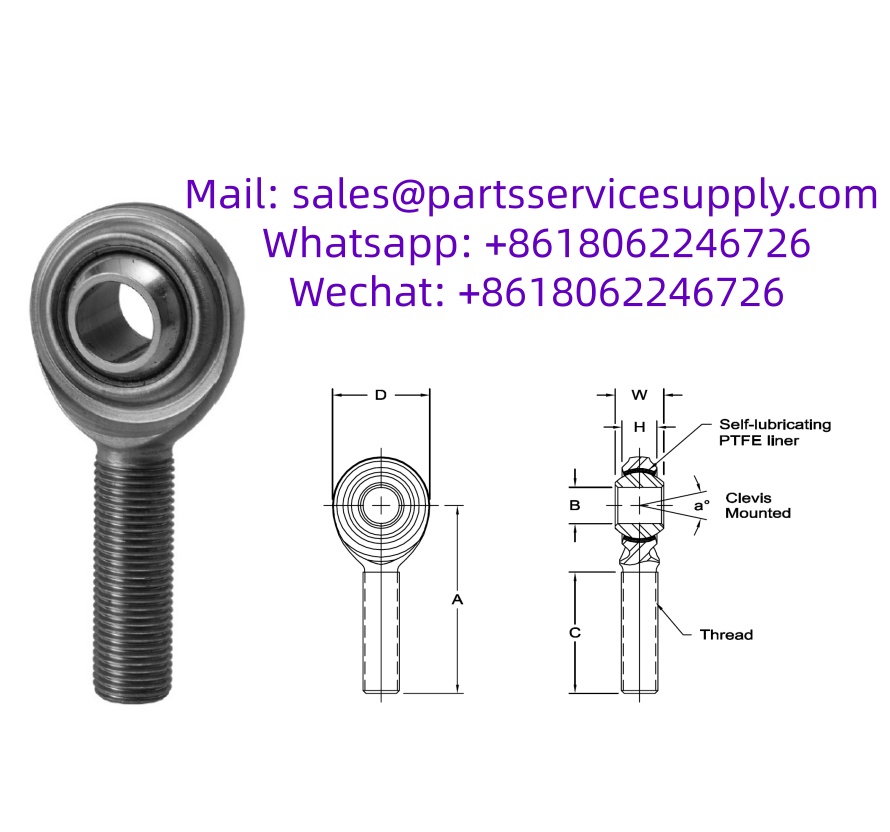

Size	Inch	mm
B - Ball Bore	0.75	19.05
W - Ball Width	0.875	22.23
H - Head Width	0.593	15.06
A - Base to Center	2.875	73.03
D - Head Diameter	1.75	44.45
Ball Diameter	1.25	31.75
C - Thread Length	1.75	44.45
Thread UNF-3A	3/4-16
a° Misalignment Angle	20
Ultimate Radial Static Load Capacity (Lbs)	25,549
Approximate Brg. Weight (Grams)	259

Body - 17-4 PH stainless steel - heat treated.

Ball - 440C stainless steel - heat treated - hard chrome plated (MFG. option).

Bushing – 17-4 PH stainless steel - heat treated - PTFE lined.

Studded configuration available upon request. Specify by adding suffix "S". Ex.: CM-8ETS.

Applications:

Automotive: Steering and shifting mechanisms

Industrial & Automation: General purpose linkages, packaging equipment, and light-duty mechanical assemblies.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
