China LYMC 2787/1000GK Swing Ball Bearing Spare Parts Wholesale

🔍

2787/1000GK

Bore Diameter:972.6 mm

Outside Diameter:1270 mm

Width:100 mm

Weight:322 kg

Reference FOB Price:US200 ~ 800 / Piece

Min. Order:1 Piece

The 2787/1000GK bearing is a four point contact slewing ball bearing with an inner diameter of 972.6 mm , an outer diameter of 1270 mm, a width of 100 mm. features a Nylon/steel/copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Cranes, Aerial lifts, Excavators, Wind turbines, Utility derricks, Log loaders and feller bunchers, Grapples, Mining equipment

Dimensions:

Inside Diameter:

972.6 mm

Outside Diameter:

1270 mm

Thickness:

100 mm

Weight:

322 KG

Outer Ring Width:

Inner Ring Width:

Limiting speed (Oil rpm):

EP2

Specifications:

HS Code:

8482109000

Structure:

four point contact ball bearing

Number of Rows:

single row

Demensions:

1270*972.6*100

Brand:

LYMC

Bearing Material:

42CrMo/50Mn/45#/custom

Cage material:

Nylon/steel/copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

Internal gear

Transaction Information:

Transport Package:

export wooden cases

Service:

reply within 24 hours, oem service, design service, technical support

Shipping Ways:

sea, air, express, train

Country of Origin:

China

Quality Control:

iso9001, QC report

Stock:

100 Piece

Production Capacity:

100pc/month

Port:

qingdao, shanghai, tianjin, ningbo, guangzhou

Payment term:

fob, cif, exw

Delivery time:

15-45days

Detailed description

China LYMC 2787/1000GK swing ball bearing spare parts wholesale

material:42crmo/50mn/45#/custom

structure:single row four point contact slewing ball bearing

gear option:external gear, internal gear, non gear

raceway hardness:55-62HRC

OD(outer ring diameter D):1270mm

ID(inner ring diameter da):972.6mm

thickness/width(H):100mm

Mounting hole dia(D1):1220mm

Mounting hole dia(D2):1050mm

outer ring width/thickness:85mm

inner ring width/thickness:85mm

module(m):6

teeth no.(Z):164

Mass:322kgs

Luoyang MC Bearing Technology Co.,Ltd (LYMC),who is manufacture located in bearing zone, focus on Slewing bearing, cross roller bearing and pinion,Dia from 50mm-8000mm, Our team with technical and full experience in the bearing industry.

Four-point contact ball slewing turntable bearings consist of two ring seats. Compact structure, light weight, steel ball and arc track contact at four points, can bear axial force,radial force and overturning moment at the same time, has strong dynamic load.

Packaging:

1.Filling with anti-rust oil
2.Corved with Plastic paper
3.Corved with kraft paper
4.Corved with Blue tie
5.Put in wooden box

Delivery time:

within 7 working days with stock(standard slewing bearing)

within 35-45 working days without stock(non-standard slewing bearing)

Payment term:T/T

If any interesteed items or inquiry, please feel free to contact us. All inquiry will be replied within 24 hours.

Share this product to:

Let more people see your product

How can you buy China LYMC 2787/1000GK Swing Ball Bearing Spare Parts Wholesale on the Internet?
High quality 2787/1000GK ( 322 kg Mass, ID: 972.6 mm OD: 1270 mm WD: 100 mm , single row Rows , 42CrMo/50Mn/45#/custom Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 2787/1000GK. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

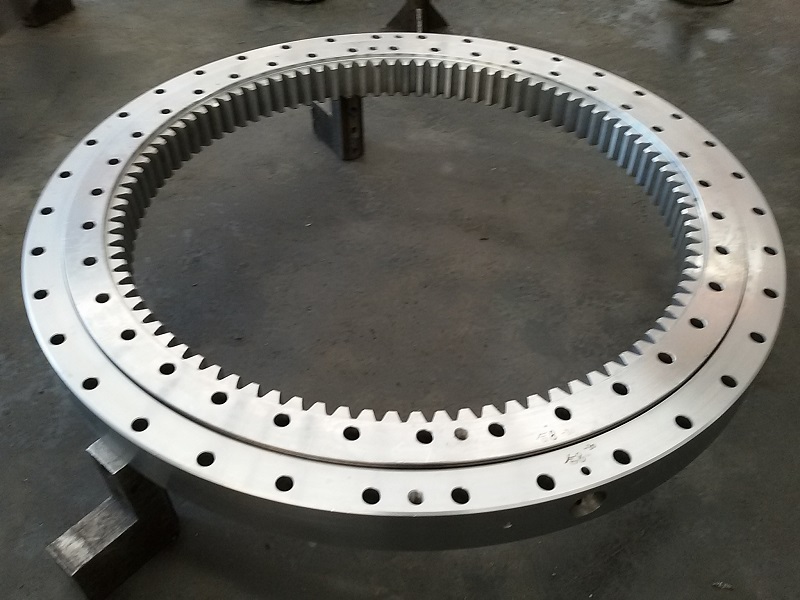

- Standard 12-20 0941/1-02262 turntable ball bearing with internal gear
