Cheap MTE-324T Swing Circle Ball Bearing Dimensions

🔍

MTE-324T

Bore Diameter:12.750 inch

Outside Diameter:20.486 inch

Width:2.062 inch

Reference FOB Price:US400 ~ 800 / Piece

Min. Order:1 Piece

The MTE-324T bearing is a four point contact ball bearing with an inner diameter of 12.750 inch , an outer diameter of 20.486 inch, a width of 2.062 inch. It typically uses P0,P2,P4,P6 grade precision tolerances and features a Nylon/ steel /copper cage, GCr15 balls, GCr15 rings. open type, NBR. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: industrial equipment, foresty machine, mining and metallurgy.

Dimensions:

Inside Diameter:

12.750 inch

Outside Diameter:

20.486 inch

Thickness:

2.062 inch

Outer Ring Width:

2.022

Inner Ring Width:

2.022

Reference speed (Grease rpm):

EP2

Specifications:

HS Code:

848210

Structure:

four point contact ball bearing

Number of Rows:

Demensions:

20.486*12.750*2.062

Brand:

lymc

Precision Rating:

P0,P2,P4,P6

Bearing Material:

42CrMo/42CrMoQT/50Mn

Cage material:

Nylon/ steel /copper

Seals Type:

open

Seal Material:

NBR

Ball Material:

GCr15

Roller Material:

GCr15

Rolling Element:

steel ball

Gear Options:

external gear only

Transaction Information:

Transport Package:

wooden box

Service:

OEM

Shipping Ways:

sea, air

Country of Origin:

China

Quality Control:

QC report, ISO

Stock:

100 Piece

Production Capacity:

1000

Port:

shanghai, qingdao, ningbo

Payment term:

T/T, L/C

Delivery time:

30 days

Detailed description

Cheap MTE-324T swing circle ball bearing dimensions technical datas:

Material:42CrMo/50Mn/42CrMo4

Structure:four point contact slewing ball bearing

Ball material:Gcr15

Do:20.486

di:12.750

H:2.062

Ho/Hi:2.022

G:98Ibs

Lo:18.875

no:20

Bo:5-8/11

Li:14.375

ni:20

Bi:5/8-11

Tooth Form:FS

D2:20.200

GEAR DATA:

Pd:5/7

Z2:101

b2:2.022

Fz:(MAX GEAR TOOTH LOAD):8,700Ibs

Moment rating:102,400(ft-Ibs)

If you are insterested in Cheap MTE-324T swing circle ball bearing dimensions more details, please contact us freely.

Share this product to:

Let more people see your product

How can you buy Cheap MTE-324T Swing Circle Ball Bearing Dimensions on the Internet?
High quality MTE-324T ( ID: 12.750 inch OD: 20.486 inch WD: 2.062 inch , 1 Rows , P0,P2,P4,P6 Accuracy Class , 42CrMo/42CrMoQT/50Mn Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. MTE-324T. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

- L shape RKS.21 0541 slewing ring with size 640*434*56mm
- L shape RKS.21 0541 slewing ring with size 640*434*56mm De(OD):640mm Di(ID):434mm Bi:498mm
- Non-gear VU13 0225 turntable ball bearing ring size 290*200*24mm
- Non-gear VU13 0225 turntable ball bearing ring size 290*200*24mm Material:42CrMo/50Mn/42CrMo4 Structure:Non-gear four point contact
- Standard 32 0741 01 slewing ring bearing manufacture
- Standard 32 0741 01 slewing ring bearing manufacture dimensions:816*649*56mm Structure:four point contact slewing ball
- 42CrMo/50Mn MTE-145T turntable bearings
- Best quality 42CrMo/50Mn MTE-145T turntable bearings with gear technical datas: Material:42CrMo/50Mn/42CrMo4 Structure:four point contact
- Large size 01-2560-01 swing ball bearing parts with gear
- Large size 01-2560-01 swing ball bearing parts with gear Bearing size:2695*2425*63mm Mounting hole:36-φ17.5,36-φ17.5
- Non-gear small XU 050077 cross roller bearing supply
- Non-gear small XU 050077 cross roller bearing supply Material:42CrMo/50Mn/42CrMo4 Structure:cross roller bearing
- Non-gear VU13 0225 turntable ball bearing ring size 290*200*24mm
- Non-gear VU13 0225 turntable ball bearing ring size 290*200*24mm Material:42CrMo/50Mn/42CrMo4 Structure:Non-gear four point contact

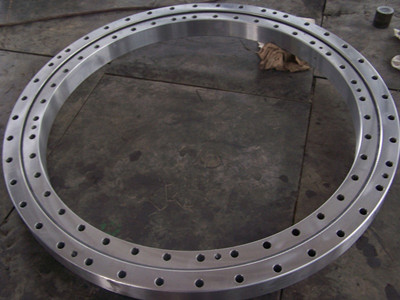

- Light weight steel ball bearing gear ring 03-0600-02 without gear
