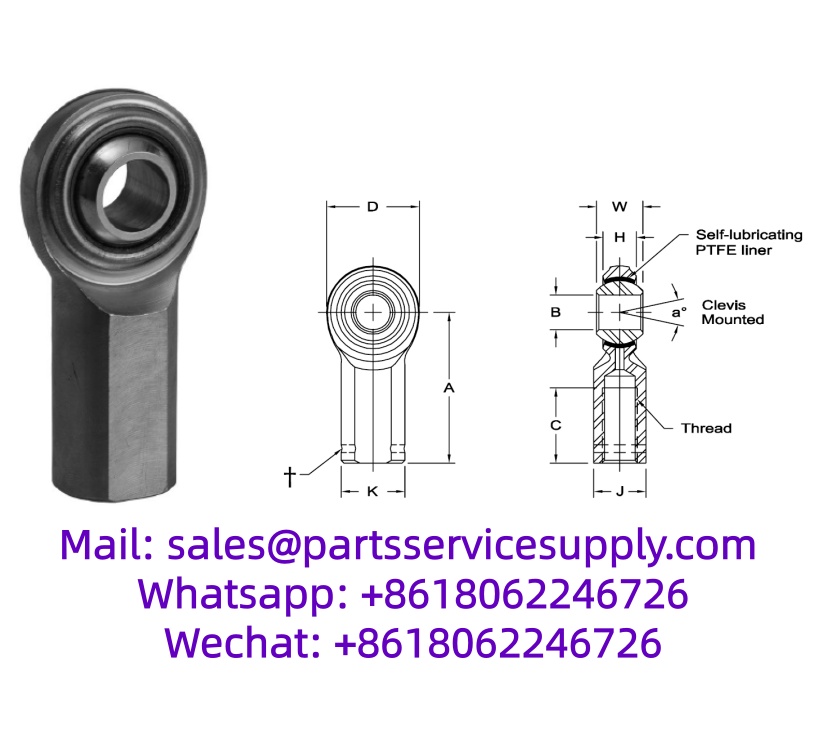

CG-7ET Rod End (Shaft Dia: 0.4375 Inch)
The CG-7ET bearing is a Rod Ends with an inner diameter of 0.4375 inch , It typically uses Standard grade precision tolerances and together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Steering and shifting mechanisms, general purpose linkages, packaging equipment, and light-duty mechanical assemblies.
CG-7ET rod end, female threaded, left hand, corrosion resistant, self-Lubricating. Long service life, and smooth articulation.
Bore Diameter: 0.4375 Inch (11.113 mm)
Thread Size: 7/16-20 UNF-2B
Thread Direction: Left Hand
Rod End Type: Female
HS Code: 8482109000
|
Rod End |
||
|
Part Number |
CG-7ET |
|
|
Thread Type |
Left Hand |
|
|
Thread Configuration |
Female |
|
|
Size |
Inch |
mm |
|
B - Ball Bore |
0.4375 |
11.113 |
|
W - Ball Width |
0.562 |
14.27 |
|
H - Head Width |
0.406 |
10.31 |
|
A - Base to Center |
1.812 |
46.02 |
|
D - Head Diameter |
1.125 |
28.58 |
|
K - Shank Diameter |
0.75 |
19.05 |
|
J - Wrench Flat Width |
0.625 |
15.88 |
|
Ball Diameter |
0.781 |
19.84 |
|
C - Thread Length |
0.937 |
23.80 |
|
Thread UNF-2B |
7/16-20 |
|
|
a° Misalignment Angle |
17 |
|
|
Ultimate Radial Static Load Capacity (Lbs) |
9,370 |
|
|
Approximate Brg. Weight (Grams) |
82 |
|
Body - 17-4 PH stainless steel - heat treated.
Ball - 440C stainless steel - heat treated - hard chrome plated (MFG. option).
Bushing – 17-4 PH stainless steel - heat treated - PTFE lined.
Studded configuration available upon request. Specify by adding suffix "S". Ex.: CW-8ETS.
Applications:
Automotive: Steering and shifting mechanisms
Industrial & Automation: General purpose linkages, packaging equipment, and light-duty mechanical assemblies.
