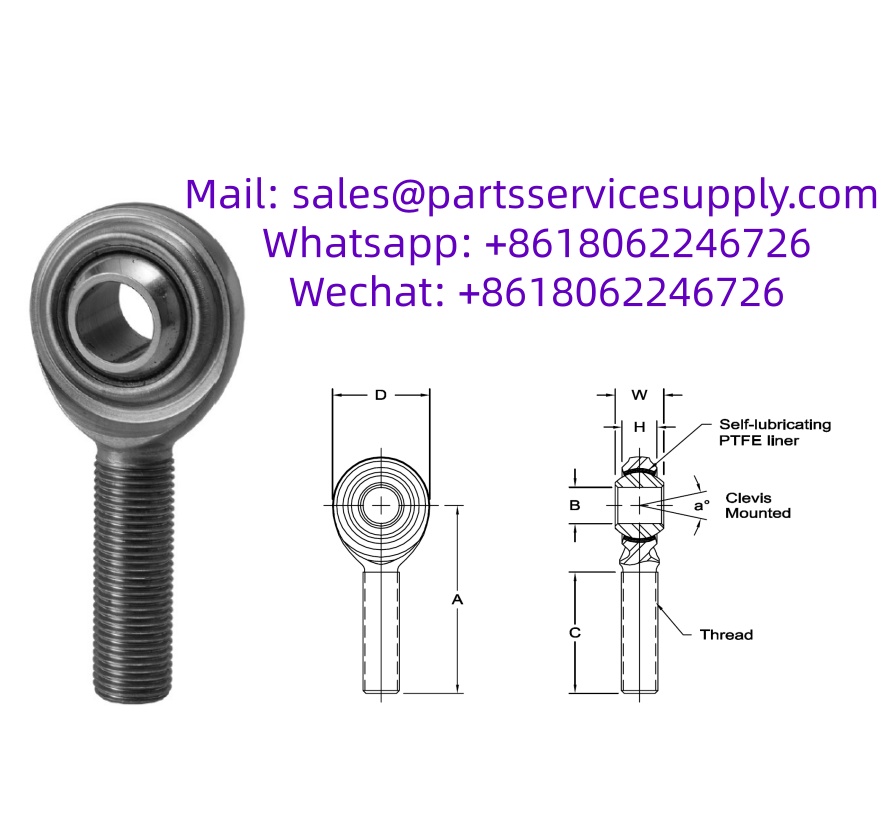

CB-6ET Rod End (Shaft Dia: 0.375 Inch)
The CB-6ET bearing is a Rod Ends with an inner diameter of 0.375 inch , together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Steering and shifting mechanisms, general purpose linkages, packaging equipment, and light-duty mechanical assemblies.
CB-6ET rod end, male threaded, left hand, corrosion resistant. Long service life, and smooth articulation.
Bore Diameter: 0.375 Inch (9.525 mm)
Thread Size: 3/8-24 UNF-3A
Thread Direction: Left Hand
Rod End Type: Male
HS Code: 8482109000
|
Rod End |
||
|
Part Number |
CB-6ET |
|
|
Thread Type |
Left Hand |
|
|
Thread Configuration |
Male |
|
|
Size |
Inch |
mm |
|
B - Ball Bore |
0.375 |
9.525 |
|
W - Ball Width |
0.5 |
12.7 |
|
H - Head Width |
0.359 |
9.12 |
|
A - Base to Center |
1.938 |
49.23 |
|
D - Head Diameter |
1 |
25.4 |
|
Ball Diameter |
0.687 |
17.45 |
|
C - Thread Length |
1.25 |
31.75 |
|
Thread UNF-3A |
3/8-24 |
|
|
a° Misalignment Angle |
18 |
|
|
Ultimate Radial Static Load Capacity (Lbs) |
8,627 |
|
|
Approximate Brg. Weight (Grams) |
50 |
|
Body - 17-4 PH stainless steel - heat treated.
Ball - 440C stainless steel - heat treated - hard chrome plated (MFG. option).
Bushing – 17-4 PH stainless steel - heat treated - PTFE lined.
Studded configuration available upon request. Specify by adding suffix "S". Ex.: CM-8ETS.
Applications:
Automotive: Steering and shifting mechanisms
Industrial & Automation: General purpose linkages, packaging equipment, and light-duty mechanical assemblies.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
