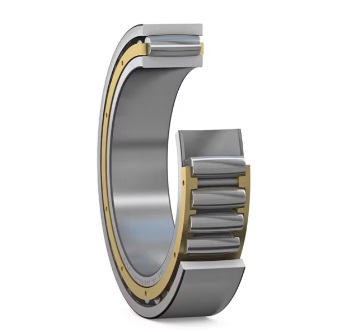

C 31/630 KMB + AOH 31/630 Bore 600 Mm, CARB Toroidal Roller Bearings On A Withdrawal Sleeve
The C 31/630 KMB + AOH 31/630 CARB ring roller bearings are widely used in continuously operating equipment where misalignment and thermal expansion occur, specifically including: papermaking machinery (drying cylinders, calenders), wind power generation (main shafts), industrial gearboxes, continuous casting lines, ship propulsion shafts, and large wind turbines.
The C 31/630 KMB + AOH 31/630 bearing is a CARB toroidal roller bearings on a withdrawal sleeve with an inner diameter of 600 mm , an outer diameter of 1030 mm, a width of 315 mm. It typically uses PN grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. It uses CN standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
C 31/630 KMB + AOH 31/630 bearings ( 600 mm x 1030 mm x 315 mm) have the advantages of Self-aligning + displacement, high load capacity, long service life, and are therefore widely used in the Papermaking machinery, wind turbines, industrial gearboxes, material conveying equipment and vibrating screens.
| Part Number | C 31/630 KMB + AOH 31/630 |
| Interchangeable | SKF C 31/630 KMB + AOH 31/630 |
| Cage | MB = a machined brass cage, prong-type, inner ring centred |
| Bearing Type | CARB toroidal roller bearings on a withdrawal sleeve |
| Load | radial |
| Accuracy class | PN |
| Bearing part | Complete |
| Internal clearance | CN |
| Row NO. | One |
| Heat stabilized | 200 °C (390 °F) |
| Seal | Open |
| Units | Metric |
| Manufacturer Part Code | C31/630KMB + AOH31/630 |
| Series | C 31 series (C 31.. KMB + AOH) |
| Lubrication | NO |
| Locating feature | NO |
| Relubrication feature | NO |
| Withdrawal sleeve | AOH 31/630 |
| Weight [lb] | 2601.4280 |
| d φ Inside [inch] | 23.6220 |
| D Φ Outside [inch] | 40.5511 |
| B Thickness [inch] | 12.4016 |
| B2 [inch] | 15.3149 |
| d1 [inch] | 23.6220 |
The C 31/630 KMB + AOH 31/630 CARB ring roller bearings consist of an inner ring (with double raceways), a spherical outer ring, ring rollers (symmetrical rollers with a special profile), and a cage. The outer ring raceways are spherical, and the rollers are arranged in a ring, combining the structural characteristics of self-aligning roller bearings and cylindrical roller bearings.
CARB ring roller bearings integrate self-aligning capability and axial displacement capability, compensating for shaft bending and misalignment (self-aligning function) while allowing bidirectional axial displacement between the shaft and the bearing housing (floating function). They have extremely high radial load capacity, with line contact between the rollers and raceways, resulting in uniform stress distribution. Their compact structure allows them to replace the combination of self-aligning roller bearings and floating end bearings, simplifying system design.
