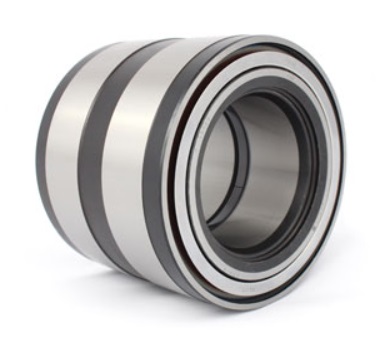

BTH 0053 Wheel End Hub For IVECO, Irisbus, DAF

🔍

BTH 0053

Bore Diameter:90 mm

Outside Diameter:160 mm

Width:125 mm

Weight:10.24 kg

Min. Order:1 Piece

The BTH 0053 Truck and trailer wheel bearings are used on the front wheels, rear wheels, drive axles, and trailer wheels of light trucks (Ford F-150), heavy trucks (Volvo FH), vans (Mercedes-Benz Sprinter), and trailers (single-axle trailers, container trailers).

The BTH 0053 bearing is a Wheel end hub with an inner diameter of 90 mm , an outer diameter of 160 mm, a width of 125 mm. It typically uses P0 (ABEC-1), P6 (ABEC-3) grade precision tolerances and Chrome Steel (Gcr15) rings, Chrome Steel (Gcr15) rolling mlement. It primarily bears Axial and radial loads, Double seals type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: FAG 201059 , FAG 805012.06.H195 , SKF BTH 0053 , SKF VKBA 5397 , TIMKEN NP 318274-90UA7 , TIMKEN SET 1242 , DAF 1400291 , DAF 1408086 , IVECO 1905487 , IVECO 2996882 , IVECO 7179749 , IVECO 7179751 , IVECO 7183074 , IVECO 7183075 , IVECO 7189050 , IVECO 7189648 , Fersa F 15122

Dimensions:

Inside Diameter:

90 mm

Outside Diameter:

160 mm

Thickness:

125 mm

Weight:

10.24 KG

Specifications:

Structure:

Truck and trailer wheel bearings

Number of Rows:

Two

Precision Rating:

P0 (ABEC-1), P6 (ABEC-3)

Load Direction:

Axial and radial loads

Bearing Material:

Chrome Steel (Gcr15)

Seals Type:

Double seals

Rolling Mlement Material:

Chrome Steel (Gcr15)

Bore Type:

Cylindrical

Operating Temperature:

-30 to 80 °C

System of Measurement:

Metric

Rolling Element:

Tapered roller

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

BTH 0053 bearings ( 90 mm x 160 mm x 125 mm) have the advantages of Integrated, maintenance-free, high load capacity, low friction, and are therefore widely used in the Front wheels, rear wheels, drive axle and trailer wheel ends.

BTH 0053 is a Wheel end hub for IVECO, Irisbus, DAF reference the SKF brand, typically installed on the Rear axle of IVECO, Irisbus, DAF.
Part Number	BTH 0053
Bearing type	Wheel end hub
Interchangeable	SKF BTH 0053
Cross references	FAG 201059 , FAG 805012.06.H195 , SKF BTH 0053 , SKF VKBA 5397 , TIMKEN NP 318274-90UA7 , TIMKEN SET 1242, SNR HDS226, CRF 41.83074, Fersa F 15122
OEM references	DAF 1400291 , DAF 1408086 , IVECO 1905487 , IVECO 2996882 , IVECO 7179749 , IVECO 7179751 , IVECO 7183074 , IVECO 7183075 , IVECO 7189050 , IVECO 7189648
Commercial vehicles	IVECO, Irisbus, DAF
Precision Rating	P0 (ABEC-1), P6 (ABEC-3)
Seal	Double seals
Fitting position	Rear axle
Apploication	IVECO EuroTech MT 199201 - 199808 IVECO EuroTech MP 199201 - / IVECO EuroStar 199301 - 200202 IVECO EuroTech MH 199809 - / IVECO EuroCargo 199101 - / IVECO Stralis 200202 - / IRISBUS: Arway, Evadys, Magelys DAF: LF55
d φ Inside	90 mm
D Φ Outside	160 mm
T,B Width	125 mm
Weight	10.24 kg

The BTH 0053 Truck and trailer wheel bearings consist of an inner ring, outer ring, rolling elements (steel balls or tapered rollers), cage, seals, and integrated flange. Some models incorporate ABS gear rings and sensors.

Truck and trailer wheel bearings feature integrated preload and pretensioning, requiring no maintenance and offering a long lifespan; high load capacity to withstand heavy loads and impacts; low rolling resistance for improved fuel economy; high rigidity for stable handling; and optional integrated ABS sensors for enhanced braking safety.

Share this product to:

Let more people see your product

How can you buy BTH 0053 Wheel End Hub For IVECO, Irisbus, DAF on the Internet?
High quality BTH 0053 ( 10.24 kg Mass, ID: 90 mm OD: 160 mm WD: 125 mm , Two Rows , P0 (ABEC-1), P6 (ABEC-3) Accuracy Class , Chrome Steel (Gcr15) Material ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. BTH 0053. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.

BTH 0053 Wheel End Hub For IVECO, Irisbus, DAF
