Brass Cage 140TAC03DM Angular Contact Super Precision Bearings For Ball Screw Support
The 140TAC03DM Ball screw support bearings are widely used in the feed drive systems of CNC machine tools, specifically including: machining centers (X/Y/Z axis screw support), CNC lathes (Z-axis), EDM machines, precision grinding machines, industrial robots (linear modules), and semiconductor equipment (wafer positioning platforms).

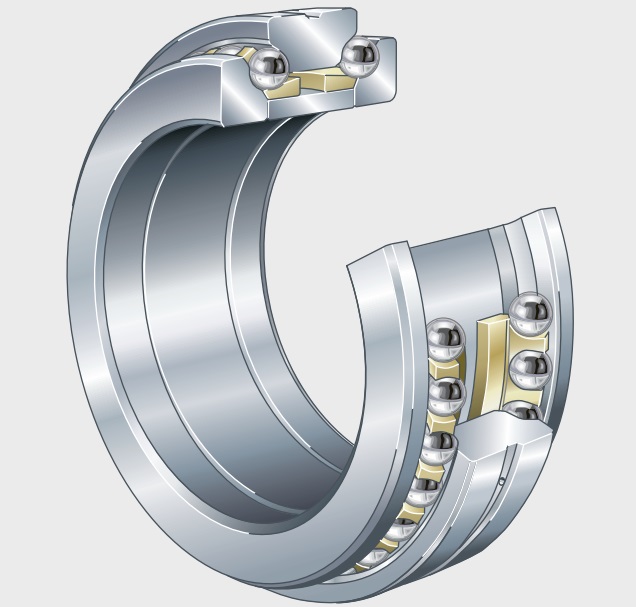

The 140TAC03DM bearing is a Angular Contact Super Precision Thrust Ball Bearings, TAC 03 Series for Ball Screw Support (High-Load Drive) with an inner diameter of 140 mm , an outer diameter of 300 mm, a width of 62 mm. It typically uses PN5D = Standard accuracy (ISO Class 5) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
140TAC03DM bearings ( 140 mm x 300 mm x 62 mm) have the advantages of High axial stiffness and load-bearing capacity, 60° contact angle design, pre-installed and pre-loaded for easy installation, optional sealing for maintenance-free operation, and are therefore widely used in the Machine tool ball screws, machining centers, automated equipment, robots, precision measuring devices.
| Part Number | 140TAC03DM |
| Bearing Type | Angular Contact Super Precision Thrust Ball Bearings, TAC 03 Series for Ball Screw Support (High-Load Drive) |
| Internal design | D = Contact angle 55 ° |
| Contact angle - α | 55 ° |
| Type | TAC |
| Dimension series | 03 = 03 Series |
| Preload | EL = Extra light preload |
| Bearing Mass - m [lb] | 49.3830 |
| DB/DF Arrangement H preload [lbf] | 377 |
| DB/DF Arrangement H Axial Rigidity | 1085 N/µm |
| DB/DF Arrangement H Starting Torque | 0.24 N･m |
| DB/DF Arrangement H Measured Axial Clearance | -9 µm |
| Speed ratings (grease) - nB | 1250 min–1 |
| Speed ratings (oil) - nG | 1679 min–1 |
| Recommended Grease Quantities - CC | 336 g/brg |
| Dimension | |
| d φ Inside [inch] | 5.5118 |
| D Φ Outside [inch] | 11.8110 |
| B Width [inch] | 2.4409 |
| r min Chamfer [inch] | 0.1575 |
| r1 min Chamfer [inch] | 0.0591 |
| d1 Shoulder [inch] | 6.8622 |
| d2 Shoulder [inch] | 8.5197 |
| D1 Shoulder/Recess [inch] | 8.8031 |
| D2 Shoulder/Recess [inch] | 10.5630 |
| Dynamic Axial Capacity | |
| Ca 1 row [lbf] | 135951 |
| Ca 2 row [lbf] | 221366 |
| Ca 3 row [lbf] | 294381 |
| Ca 4 row [lbf] | 359642 |
| Ca 5 row [lbf] | 420314 |
| Static Axial Capacity | |
| C0a 1 row [lbf] | 178457 |
| C0a 2 row [lbf] | 357359 |
| C0a 3 row [lbf] | 534944 |
| C0a 4 row [lbf] | 719326 |
| C0a 5 row [lbf] | 887906 |
| Other Arrangement | 1 rows: DB(<>); DF(><) 2 rows: DT(<<); DFD(><<); DFF(>><<); DBD(<<>); DBB(<<>>) 3 rows: DFT(><<<); DFFD(>><<); DFFF(>>><<<); DBT(<<<>); DBBD(<<<>>); DBBB(<<<>>>) 4 rows: DFTD(><<<<); DFFT(>><<<<); DBTD(<<<<>); DBBT(<<<<>>) 5 rows: DFTT(><<<<<); DBTT(<<<<<>) |
The 140TAC03DM Ball screw support bearings are typically composed of high-precision angular contact ball bearings paired back-to-back (DB) or in series (DT) configurations. They feature a small contact angle (15° or 20°) and high-rigidity cages (phenolic resin or brass) on both inner and outer rings, achieving a precision grade of P4 or higher. Some models integrate seals and lubrication holes, forming a preload unit.
Ball screw support bearings offer extremely high axial rigidity and load-bearing capacity, accurately withstanding bidirectional axial loads in screw drives. The back-to-back configuration provides anti-overturning moment capability, ensuring positioning accuracy. The preload design eliminates axial backlash, achieving backlash-free, low-friction operation with low heat generation, making them suitable for high-speed feed. They are factory-installed and ready to use, simplifying installation and adjustment.
