BC4B 326909/HA3 Four-row Rolling Mills Bearing, Machined Brass Cage
The BC4B 326909/HA3 Four-row cylindrical roller bearings is suitable for heavy machinery applications that bear huge radial loads. Classic applications include: support rolls of rolling mills, large gearboxes, heavy machine tool spindles, wind turbine spindles, ship propulsion shafts, and rotor supports for high-power compressors.
The BC4B 326909/HA3 bearing is a Four-row cylindrical roller bearing for rolling mills with an inner diameter of 350 mm , an outer diameter of 520 mm, a width of 300 mm. GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rings, GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rolling mlement. Its dynamic radial rated load is approximately 4677695 N, its static radial rated load is approximately 8997727 N. It uses C2 standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
BC4B 326909/HA3 bearings ( 350 mm x 520 mm x 300 mm) have the advantages of Extremely high radial load capacity, high rigidity, separable design, and are therefore widely used in the metallurgical rolling mills, large gearboxes, and heavy-duty extrusion presses.
| Part Number | BC4B 326909/HA3 |
| Interchangeable | SKF BC4B 326909/HA3 |
| Bearing Type | Four-row cylindrical roller bearing for rolling mills |
| Cage | Machined brass cage |
| Radial internal clearance | C2 |
| Seal | Open |
| Bore Type | Cylindrical bore with helical groove |
| Design variant | BC4.1/W33GWI |
| Series | BC4B 3269../HA3 |
| Coating | No |
| Units | Metric |
| Weight [lb] | 487.217 |
| Equivalent | 568450 |
| Lubricant | No |
| Bearing part | Complete |
| Ring | outer ring(5),inner ring(0) |
| Flange | No |
| Relubrication | With |
| Heat stabilized | 150 °C(300 °F) |
| Cr Radial Dynamic [lbf] | 1051545 |
| C0r Radial Static [lbf] | 2022689 |
| Pu Fatigue load limit [lbf] | 179533 |
| nB Speed ratings (grease) [rpm] | 833 |
| nG Speed ratings (oil) [rpm] | 1291 |

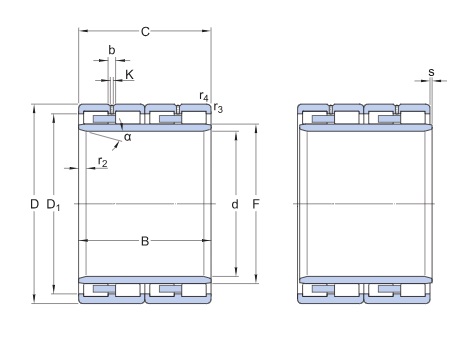

| Dimension | |
| d φ Inside [inch] | 13.780 |
| D Φ Outside [inch] | 20.472 |
| B Inner Width [inch] | 11.811 |
| C Outer Width [inch] | 11.811 |
| D1 [inch] | 18.423 |
| F [inch] | 15.787 |
| r1, r2(min.) [mm] | 10x20° |
| r3, r4(min.) [mm] | 5 |
| b angular groove [inch] | 0.457 |
| K lubrication hole [inch] | 0.236 |
The BC4B 326909/HA3 Four-row cylindrical roller bearings mainly consist of an inner ring, an outer ring, four rows of cylindrical rollers, a cage, and a spacer. Common structures use a configuration of double outer rings (each with double raceways) and a single inner ring (with four raceways), or an interchangeable combination of inner and outer rings. Axial positioning and load distribution are achieved through the spacer.
The advantages of four-row cylindrical roller bearings are their extremely high radial load capacity, high rigidity, and the line contact between the rollers and raceways, resulting in a low coefficient of friction and allowing for high-speed operation under heavy loads. They can also be used as floating end bearings, capable of withstanding axial displacement caused by thermal expansion, and are easy to install and maintain.
