BC4-8003/HA1VA907 Four-row Cylindrical Roller Bearing For Rolling Mills, Stamping Steel Cage
The BC4-8003/HA1VA907 Four-row cylindrical roller bearings is suitable for heavy machinery applications that bear huge radial loads. Classic applications include: support rolls of rolling mills, large gearboxes, heavy machine tool spindles, wind turbine spindles, ship propulsion shafts, and rotor supports for high-power compressors.
The BC4-8003/HA1VA907 bearing is a Four-row cylindrical roller bearing for rolling mills with an inner diameter of 475 mm , an outer diameter of 600 mm, a width of 392 mm. It typically uses PN grade precision tolerances and GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rings, GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rolling mlement. Its dynamic radial rated load is approximately 5498359 N, its static radial rated load is approximately 14599121 N. It uses CN standard radial clearance, Seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
BC4-8003/HA1VA907 bearings ( 475 mm x 600 mm x 392 mm) have the advantages of Extremely high radial load capacity, high rigidity, separable design, and are therefore widely used in the metallurgical rolling mills, large gearboxes, and heavy-duty extrusion presses.
| Part Number | BC4-8003/HA1VA907 |
| Interchangeable | SKF BC4-8003/HA1VA907 |
| Bearing Type | Four-row cylindrical roller bearing for rolling mills |
| Cage | Stamping steel cage |
| Accuracy class | PN |
| Radial internal clearance | CN |
| Seal | Seal on both sides |
| Sealing type | Contact |
| Bore Type | Cylindrical bore with helical groove |
| Design variant | BC4.22/W33G |
| Series | BC4-80../HA1VA907 |
| Coating | Seal on both sides |
| Units | Metric |
| Lubricant | Grease |
| Bearing part | Complete |
| Flange | No |
| Relubrication | With |
| Heat stabilized | 150 °C(300 °F) |
| Cr Radial Dynamic [lbf] | 1236031 |
| C0r Radial Static [lbf] | 3281882 |
| Pu Fatigue load limit [lbf] | 285326 |

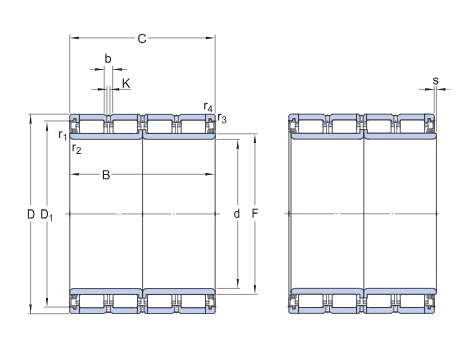

| Dimension | |
| d φ Inside [inch] | 18.701 |
| D Φ Outside [inch] | 23.622 |
| B Inner Width [inch] | 15.433 |
| C Outer Width [inch] | 15.433 |
| D1 [inch] | 22.138 |
| F [inch] | 19.842 |
| r1, r2(min.) [mm] | 3 |
| r3, r4(min.) [mm] | 3 |
| b angular groove [inch] | 0.657 |
| K lubrication hole [inch] | 0.354 |
| kr Calculation coefficient | 500 |
The BC4-8003/HA1VA907 Four-row cylindrical roller bearings mainly consist of an inner ring, an outer ring, four rows of cylindrical rollers, a cage, and a spacer. Common structures use a configuration of double outer rings (each with double raceways) and a single inner ring (with four raceways), or an interchangeable combination of inner and outer rings. Axial positioning and load distribution are achieved through the spacer.
The advantages of four-row cylindrical roller bearings are their extremely high radial load capacity, high rigidity, and the line contact between the rollers and raceways, resulting in a low coefficient of friction and allowing for high-speed operation under heavy loads. They can also be used as floating end bearings, capable of withstanding axial displacement caused by thermal expansion, and are easy to install and maintain.
