BC2B 326196/HA1VJ202 Four-row Rolling Mills Bearing, Stamping Steel Cage
The BC2B 326196/HA1VJ202 Four-row cylindrical roller bearings is suitable for heavy machinery applications that bear huge radial loads. Classic applications include: support rolls of rolling mills, large gearboxes, heavy machine tool spindles, wind turbine spindles, ship propulsion shafts, and rotor supports for high-power compressors.
The BC2B 326196/HA1VJ202 bearing is a Four-row cylindrical roller bearing for rolling mills with an inner diameter of 487.98 mm , an outer diameter of 637 mm, a width of 350 mm. It typically uses PN grade precision tolerances and GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rings, GCr15, ZGCr15, GCr15SiMn, 20Cr2Ni4A rolling mlement. Its dynamic radial rated load is approximately 6437809 N, its static radial rated load is approximately 15298825 N. It uses NSTD standard radial clearance, Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
BC2B 326196/HA1VJ202 bearings ( 487.98 mm x 637 mm x 350 mm) have the advantages of Extremely high radial load capacity, high rigidity, separable design, and are therefore widely used in the metallurgical rolling mills, large gearboxes, and heavy-duty extrusion presses.
| Part Number | BC2B 326196/HA1VJ202 |
| Interchangeable | SKF BC2B 326196/HA1VJ202 |
| Bearing Type | Four-row cylindrical roller bearing for rolling mills |
| Cage | Stamping steel cage |
| Accuracy class | PN |
| Radial internal clearance | NSTD |
| Seal | Open |
| Bore Type | Cylindrical bore |
| Design variant | BC4.15/W20WI |
| Series | BC2B 3261../HA1VJ202 |
| Coating | No |
| Units | Metric |
| Weight [lb] | 656.971 |
| Lubricant | No |
| Bearing part | Complete |
| Ring | outer ring(0),inner ring(2) |
| Flange | No |
| Relubrication | With |
| Heat stabilized | 150 °C(300 °F) |
| Cr Radial Dynamic [lbf] | 1447219 |
| C0r Radial Static [lbf] | 3439175 |
| Pu Fatigue load limit [lbf] | 274111 |

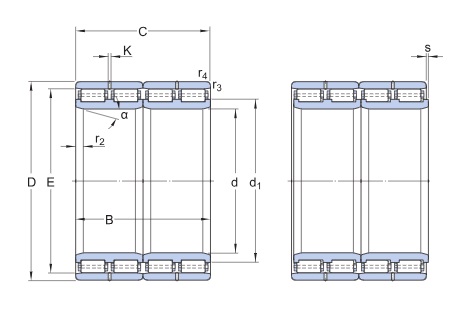

| Dimension | |
| d φ Inside [inch] | 19.212 |
| D Φ Outside [inch] | 25.079 |
| B Inner Width [inch] | 13.780 |
| C Outer Width [inch] | 13.780 |
| r1, r2(min.) [mm] | 10.5x20° |
| r3, r4(min.) [mm] | 4 |
| E [inch] | 23.846 |
| d1 [inch] | 21.287 |
| K lubrication hole [inch] | 0.354 |
| kr Calculation coefficient | 480 |
The BC2B 326196/HA1VJ202 Four-row cylindrical roller bearings mainly consist of an inner ring, an outer ring, four rows of cylindrical rollers, a cage, and a spacer. Common structures use a configuration of double outer rings (each with double raceways) and a single inner ring (with four raceways), or an interchangeable combination of inner and outer rings. Axial positioning and load distribution are achieved through the spacer.
The advantages of four-row cylindrical roller bearings are their extremely high radial load capacity, high rigidity, and the line contact between the rollers and raceways, resulting in a low coefficient of friction and allowing for high-speed operation under heavy loads. They can also be used as floating end bearings, capable of withstanding axial displacement caused by thermal expansion, and are easy to install and maintain.
