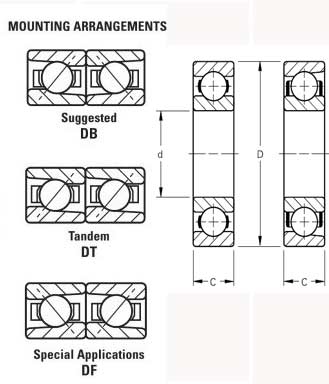

Timken 2MMV9107HX bearing stock, Dimensions, Drawing

Design Units  Metric Bearing Weight  0.3000 lb 0.1000 Kg D - Outer Diameter  2.4409 in 62.000 mm d - Bore  1.378 in 35.000 mm C - Inner Ring Width  0.5512 in 14.000 mm B - Outer Ring Width  0.5512 in 14.000 mm do - Ball Diameter  0.3189 in 8.10 mm Z - Number of Balls Per Row  15 R - Inner Ring To Clear Radius1  0.04 in 1.00 mm r - Outer Ring To Clear Radius2  0.04 in 1.00 mm da - Inner Ring Backing Diameter  1.60 in 40.6 mm Da - Outer Ring Backing Diameter  2.23 in 56.60 mm Ce - Dynamic Radial Rating1  3380 lbf 15000 N C1 ISO - Dynamic Radial Rating  3070 lbf 13600 N C0 - Static Radial Rating  1750 lbf 7770 N Limiting Speed (Grease)  29800 rpm Limiting Speed (Oil)  59600 rpm Cg - Geometry Factor1  0.0516
