Self-aligning bearings 135TN9 size: 5x19x6 SKF

Bearing 135TN9
Self-aligning ball bearings 135TN9
Bearing number : 135TN9

Size (mm) : 5x19x6
Brand : SKF
d (mm) : 5
D (mm) : 19
B (mm) : 6

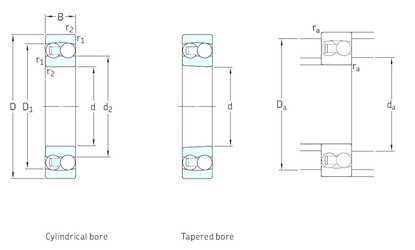

Bearing dimensions and specification in brand catalogue :
d - 5 mm
D - 19 mm
B - 6 mm
C - 6 mm
d2 - 10,3 mm
r1 min. - 0,3 mm
r2 min. - 0,3 mm
D1 - 15,4 mm
da min. - 7,4 mm
Da max. - 16,6 mm
ra max. - 0,3 mm
Weight - 0,009 Kg
Basic dynamic load rating (C) - 2,51 kN
Basic static load rating (C0) - 0,48 kN
Fatigue load limit (Pu) - 0,025
Reference speed - 63000 r/min
Limiting speed - 45000 r/min
Calculation factor (e) - 0,33
Calculation factor (kr) - 0,045
Calculation factor (Y0) - 2
Calculation factor (Y1) - 1,9
Calculation factor (Y2) - 3
