87410TN Axial Cylindrical Roller Bearings, Multi-row, Plastic Cage
The 87410TN Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.
The 87410TN bearing is a Axial cylindrical roller bearings, multi-row with an inner diameter of 50 mm , an outer diameter of 110 mm, a width of 27 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 198897 N, its static axial rated load is approximately 738558 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
87410TN bearings ( 50 mm x 110 mm x 27 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.
| Part Number | 87410TN |
| Bearing Type | Axial cylindrical roller bearings, multi-row |
| Equivalent | 874 10 TN |
| Series | 874 series (874..-TV) |
| Cage | TN = Plastic cage made from glass fibre reinforced polyamide 66 |
| Accuracy class | PN (ABEC-1) |
| Axial cylindrical roller and cage assemblies | K87410-TV |
| Housing locating washer | GS87410 |

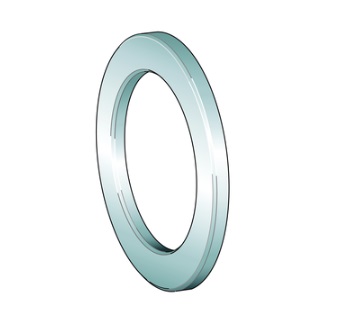

| Shaft locating washer | WS87410 |
| Weight [lb] | 2.7998 |
| Ca Axial Dynamic [lbf] | 44712 |
| C0a Axial static [lbf] | 166027 |
| nB Speed ratings (grease) [rpm] | 1193 |
| nG Speed ratings (oil) [rpm] | 3585 |
| d φ Inside [inch] | 1.9685 |
| D Φ Outside [inch] | 4.3307 |
| T Thickness [inch] | 1.0630 |
| D1 [inch] | 2.0472 |
| d1 [inch] | 4.3307 |
| r(min.) [inch] | 0.0591 |
| Mounting dimensions | |
| da [inch] | 4.2126 |
| Da(max.) [inch] | 2.1260 |
| ra(max.) [inch] | 0.0591 |
The 87410TN Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.
The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
