81168M Axial Cylindrical Roller Bearings, Single Direction, Single Row, Brass Cage

🔍

81168M

Bore Diameter:340 mm

Outside Diameter:420 mm

Width:64 mm

Weight:21.3 kg

Min. Order:1 Piece

The 81168M Cylindrical roller thrust bearings are specifically designed for applications requiring heavy axial loads and stringent positioning accuracy. Classic applications include heavy-duty vertical lathe tables, marine propeller shaft thrust devices, large gearboxes, wind turbine main gearboxes, rolling mill pressing mechanisms, and crane slewing bearings.

The 81168M bearing is a Axial cylindrical roller bearings, Single direction, Single row with an inner diameter of 340 mm , an outer diameter of 420 mm, a width of 64 mm. It typically uses PN (ABEC-1) grade precision tolerances and GCr15SiMn rings, GCr15SiMn rolling mlement. Its dynamic axial rated load is approximately 1127414 N, its static axial rated load is approximately 4992936 N. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 811 68 M

Dimensions:

Inside Diameter:

340 mm

Outside Diameter:

420 mm

Thickness:

64 mm

Weight:

21.3 KG

Dynamic load Capacity, axial:

1127414 N

Static load Capacity, axial:

4992936 N

Fatigue Load Limit, Axial:

397361 N

Reference speed (Grease rpm):

248

Limiting speed (Oil rpm):

730

Specifications:

Old Designations:

81168M

Structure:

Cylindrical Roller Thrust Bearings

Number of Rows:

One

Precision Rating:

PN (ABEC-1)

Bearing Material:

GCr15SiMn

Cage Type:

M = Brass cage

Rolling Mlement Material:

GCr15SiMn

Bore Type:

Cylindrical bore

Operating Temperature:

-30 to 150 °C

System of Measurement:

Metric

Series:

811 series (811..-M)

Rolling Element:

cylindrical rollers

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

81168M bearings ( 340 mm x 420 mm x 64 mm) have the advantages of extremely high axial load capacity, high rigidity, compact axial structure, and a detachable design for easy installation, and are therefore widely used in the Machine tool worktables, extruders, differentials, wind power equipment, and oil drilling machinery.

Part Number	81168M
Bearing Type	Axial cylindrical roller bearings, Single direction, Single row
Design	1
Equivalent	811 68 M
Series	811 series (811..-M)
Cage	M = Brass cage
Accuracy class	PN (ABEC-1)
Rows NO.	One
Axial cylindrical roller and cage assemblies	K81168-M
Housing locating washer	GS81168
Shaft locating washer	WS81168
Weight [lb]	46.9580
C_a Axial Dynamic [lbf]	253442
C_0a Axial static [lbf]	1122412
C_ua Axial Fatigue [lbf]	89326
n_B Speed ratings (grease) [rpm]	248
n_G Speed ratings (oil) [rpm]	730
d φ Inside [inch]	13.3858
D Φ Outside [inch]	16.5354
T Thickness [inch]	2.5197
B Width [inch]	0.7677
D₁ [inch]	13.5433
d₁ [inch]	16.3779
r(min.) [inch]	0.0787
Mounting dimensions
d_a [inch]	16.2992
D_a(max.) [inch]	13.9370
r_a(max.) [inch]	0.0787

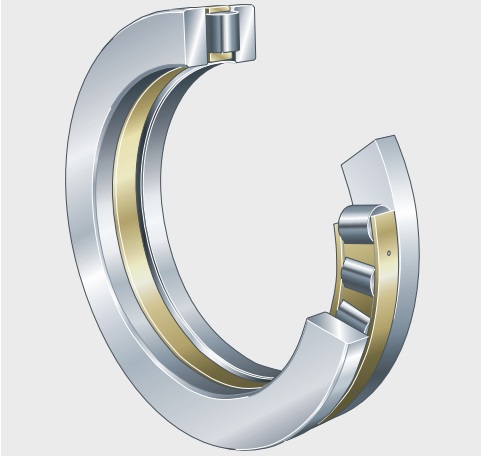

The 81168M Cylindrical roller thrust bearings mainly consist of a shaft ring, a housing ring, cylindrical rollers, and a cage assembly. The rollers are arranged radially, forming a line contact load-bearing structure.

The advantages of cylindrical roller thrust bearings include extremely high axial load capacity, excellent rigidity, and a low coefficient of friction. Optimized roller end faces and flanges can accommodate slight eccentricity and impact loads, while also featuring a compact structure and high rotational accuracy.
