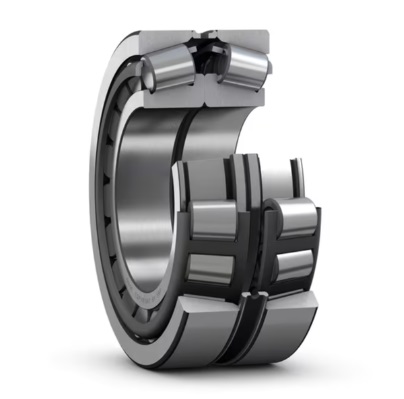

800942 Bore 230 Mm, Tapered Roller Thrust Bearings, Double Row For Work Rolls
The 800942 Rolling mill bearings are mainly suitable for applications such as floating ends that bear medium to heavy radial loads and need to accommodate shaft thermal expansion, or roll necks that need to bear combined radial and axial loads, as well as gear drives.
The 800942 bearing is a Tapered Roller Thrust Bearings, double row for work rolls with an inner diameter of 230 mm , an outer diameter of 404 mm, a width of 152 mm. case hardening steel rings, case hardening steel rolling mlement. It primarily bears Radial and axial loads, Its dynamic radial rated load is approximately 1430000 N, its static radial rated load is approximately 2600000 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
800942 bearings ( 230 mm x 404 mm x 152 mm) have the advantages of Extremely high load-bearing capacity and rigidity, and are therefore widely used in the Hot rolling, cold rolling, and wire rod mills.
| Part Number | 800942 |
| Interchangeable | FAG 800942 |
| Desgin Figure | 1 |
| Cage | Stamping steel cage |
| Arrangement | face-to-face (><) |
| Seal | Open |
| Bearing Type | Tapered Roller Thrust Bearings, double row for work rolls |
| Other | inner ring width = 144 mm |
| Bearing Weight [lb] | 160.936 |
| d φ Inside [inch] | 9.055 |
| D Φ Outside [inch] | 15.905 |
| B Width [inch] | 5.984 |
| rs min Chamfer Cup | 2 mm |
| r1s min Chamfer Cone | 2 mm |
| Cr Radial Dynamic [lbf] | 321464 |
| C0r Radial Static [lbf] | 584480 |
| Y | 0.96 |
