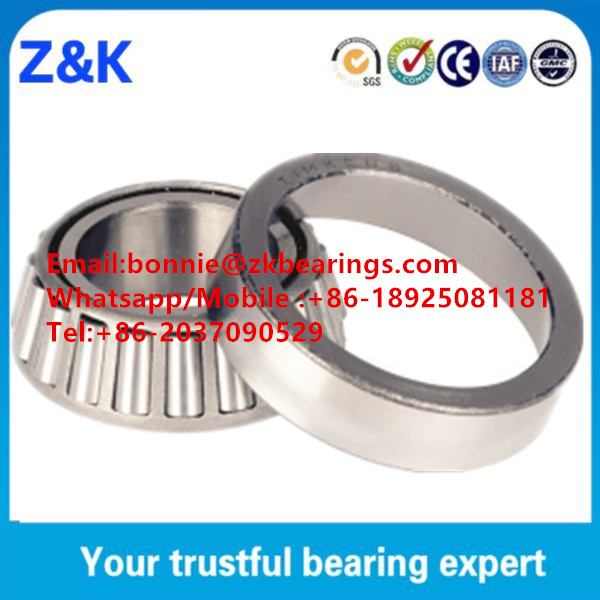

742 Single CupsTapered Roller Bearings With Low Voice

🔍

742

Bore Diameter:85.027 mm

Outside Diameter:150.089 mm

Width:46.673 mm

Min. Order:2 Piece

The 742 bearing is a Tapered Roller Bearings with an inner diameter of 85.027 mm , an outer diameter of 150.089 mm, a width of 46.673 mm. It typically uses p0/p6/p5/p4/p2 grade precision tolerances and features a Steel cage, Steel balls, steel rings. It primarily bears Radial Bearing, Its dynamic radial rated load is approximately 377000, It uses C0 C2 C3 C4 C5 standard radial clearance, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Feature: Reducer, Papermaking Machinery, Railway Vehicle

Application: Automotive, rolling mill, mining, metallurgical, skateboard etc.

Dimensions:

Inside Diameter:

85.027 mm

Outside Diameter:

150.089 mm

Thickness:

46.673 mm

Cone Width (B):

46.673

Cup Width (C):

36.513

Performance Data:

Dynamic load Capacity, Radial (Cr):

377000

Specifications:

HS Code:

8482102000

Structure:

roller Bearing

Number of Rows:

Single

Demensions:

85.027*150.089*46.673

Brand:

Z&K/Neutral / OEM

Radial Clearance Trade No.:

C0 C2 C3 C4 C5

Precision Rating:

p0/p6/p5/p4/p2

Vibration:

Z1V1 Z2V2 Z3V3

Load Direction:

Radial Bearing

Bearing Material:

Bearing Steel

Cage material:

Steel

Ball Material:

Steel

Roller Material:

steel

Series:

745

Cone Number:

749

Cup Number:

742

Transaction Information:

Transport Package:

Single Box, Plastic Barrel, Carton, Tray

Shipping Ways:

Sea, land and air transport

Country of Origin:

China

Stock:

10 Piece

Production Capacity:

1000PCS/Year

Port:

Guangzhou

Payment term:

TT/PAPAL/WESTERN UNION

Delivery time:

7-15

Detailed description

742 Single CupsTapered Roller Bearings With Low Voice
742 Single CupsTapered Roller Bearings With Low Voice
Bearing NO.:	742	Row Number:	Single Row
Series:	745	da (mm):	95
Cup Part NO.:	749	Da (mm):	142
Cup Part NO.:	742	db (mm):	101
Bore (mm)b:	85.027	Db (mm):	134.11
Cup Outer Diameter(mm)D:	150.089	Ab (mm):	2
Cone Width(mm)B:	46.673	Aa (mm):	1.3
Cup Width(mm)C:	36.513	a(mm):	-11.9
Bearing Width (mm)T:	44.45	Y:	1.84
Material:	Bearing steel	K:	1.8
Dynamic load rating (C₉₀)N:	97600	e:	0.33
Dynamic load rating (C₁)N:	377000	G1:	159.6
Dynamic load rating (C₉₀₍₂₎)N:	417000	G2:	26.3
Dynamic Thrust Ratin(Ca₉₀)N:	54400	Cg:	0.0898
Applicable Industries:	Manufacturing Plant,Home Use, Printing Shops,Construction works,Advertising Company	Contact Bonnie:	Email:[email protected]
Applicable Industries:		Contact Bonnie:	Email:[email protected]

Share this product to:

Let more people see your product

How can you buy 742 Single CupsTapered Roller Bearings With Low Voice on the Internet?
High quality 742 ( ID: 85.027 mm OD: 150.089 mm WD: 46.673 mm , 745 Series , Single Rows , C0 C2 C3 C4 C5 Radial Clearance , p0/p6/p5/p4/p2 Accuracy Class , Bearing Steel Material , 377000 Radial dynamic ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 742. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
