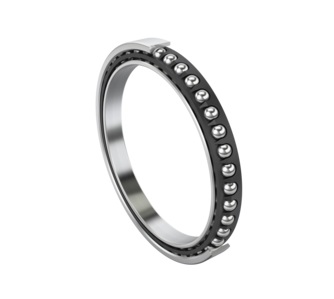

71812-TN Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

71812-TN

Bore Diameter:60 mm

Outside Diameter:78 mm

Width:10 mm

Weight:0.107 kg

Min. Order:1 Piece

The 71812-TN

The 71812-TN bearing is a Angular contact ball bearings, single row with an inner diameter of 60 mm , an outer diameter of 78 mm, a width of 10 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 12280 N, its static radial rated load is approximately 12784 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

60 mm

Outside Diameter:

78 mm

Thickness:

10 mm

Weight:

0.107 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

12280 N

Static load Capacity, Radial (Cor):

12784 N

Fatigue Load Limit, Radial:

856 N

Reference speed (Grease rpm):

5390

Limiting speed (Oil rpm):

10496

Specifications:

Structure:

Angular contact ball bearings, super-precision

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

Open

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-30 to 120 °C

Series:

718..-B-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	71812-TN
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	718..-B-TVP
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	71812-TN
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Lubricant	Without
Seal type	Open
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.107
Reference From	FAG 71812-TN
Dimensions
d φ Inside [inch]	2.362
D Φ Outside [inch]	3.071
B Width [inch]	0.394
r(min.) [inch]	0.012
r₁(min.) [inch]	0.008
D₁ [inch]	2.787
d₁ [inch]	2.646
a [inch]	1.335
Performance
C_r Radial Dynamic [N]	12280
C_0r Radial static [N]	12784
C_ur Radial Fatigue [N]	856
n_G Limiting speed (oil) [r/min]	10496
n_B Reference speed (grease) [r/min]	5390
Mounting dimensions
d_a(min.) [inch]	2.441
D_a(max.) [inch]	2.992
D_b(max.) [inch]	3.016
r_a(max.) [inch]	0.012
r_a1(max.) [inch]	0.008

Share this product to:

Let more people see your product

How can you buy 71812-TN Angular Contact Ball Bearings, Single Row, Plastic Cage on the Internet?
High quality 71812-TN ( 0.107 kg Mass, ID: 60 mm OD: 78 mm WD: 10 mm , 718..-B-TVP Series , single Rows , PN Accuracy Class , bearing steel Material , 12280 Radial dynamic , 12784 Radial static ), Just click the button " Contact Now " to mention your purchase Requirement , Quantity and Contact Method of your requested Bearing Item No. 71812-TN. then click the button " Send " The web site will make your purchasing information sent to the supplier's mailbox, who will come to contact you upon they get your information at the first time.
