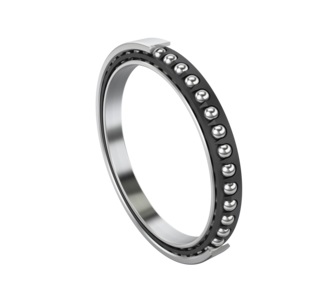

71806-TN Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

71806-TN

Bore Diameter:30 mm

Outside Diameter:42 mm

Width:7 mm

Weight:0.026 kg

Min. Order:1 Piece

The 71806-TN

The 71806-TN bearing is a Angular contact ball bearings, single row with an inner diameter of 30 mm , an outer diameter of 42 mm, a width of 7 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 5576 N, its static radial rated load is approximately 4527 N. Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

30 mm

Outside Diameter:

42 mm

Thickness:

7 mm

Weight:

0.026 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

5576 N

Static load Capacity, Radial (Cor):

4527 N

Fatigue Load Limit, Radial:

284 N

Reference speed (Grease rpm):

9597

Limiting speed (Oil rpm):

20588

Specifications:

Structure:

Angular contact ball bearings, super-precision

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

Open

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-30 to 120 °C

Series:

718..-B-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	71806-TN
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	718..-B-TVP
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	71806-TN
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Lubricant	Without
Seal type	Open
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.026
Reference From	FAG 71806-TN

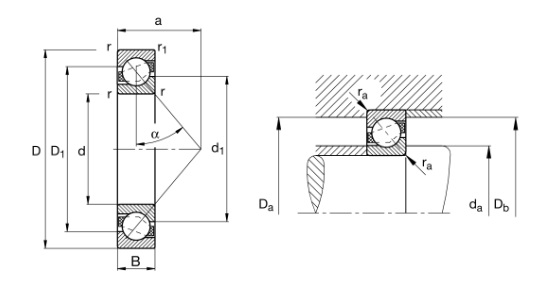

Dimensions
d φ Inside [inch]	1.181
D Φ Outside [inch]	1.654
B Width [inch]	0.276
r(min.) [inch]	0.012
r₁(min.) [inch]	0.008
D₁ [inch]	1.469
d₁ [inch]	1.366
a [inch]	0.732
Performance
C_r Radial Dynamic [N]	5576
C_0r Radial static [N]	4527
C_ur Radial Fatigue [N]	284
n_G Limiting speed (oil) [r/min]	20588
n_B Reference speed (grease) [r/min]	9597
Mounting dimensions
d_a(min.) [inch]	1.260
D_a(max.) [inch]	1.575
D_b(max.) [inch]	1.598
r_a(max.) [inch]	0.012
r_a1(max.) [inch]	0.008
