71425/71750 (d:4.25xD:7.5xT:1.875 Inch) Tapered (Inch Size) Roller Bearing
The 71425/71750 bearing is a Tapered Roller Bearings with an inner diameter of 107.95 mm , an outer diameter of 190.5 mm, a width of 47.625 mm. It typically uses Standard grade precision tolerances and features a Steel cage, Chrome Steel (Gcr15) rings. It primarily bears Radial and Thrust, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Construction, Transportation and Agricultural Machinery, Conveyor Plants, Hydraulic Jacks, and other industry.
71425/71750 Single Row Tapered Roller Bearing
Cone Part Number: 71425
Cup Part Number: 71750
Size (Inner Dia x Outer Dia x Assembly Width): 4.25x7.5x1.875 inch (107.95x190.5x47.625mm)
Mini Operating Temperature:-40 °C
Max Operating Temperature:120 °C
71425/71750 Tapered Roller Bearing (TS Type:Tapered Single) is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring: 71425) assembly and the cup (outer ring: 71750). It is typically mounted in opposing pairs on a shaft.
|
71425/71750 Tapered Roller Bearing |
||
|
Type: |
TS (Tapered Single) |
|
|
Series: |
71000 |
|
|
Cone Part Number: |
71425 |
|
|
Cup Part Number: |
71750 |
|
|
Bearing Weight (kg) |
5.58 |
|
|
Main Dimensions: |
||
|
|
inch |
mm |
|
d-Bore: |
4.25 |
107.95 |
|
D-Cup Outer Diameter: |
7.5 |
190.5 |
|
B-Cone Width: |
1.9375 |
49.213 |
|
C-Cup Width: |
1.375 |
34.925 |
|
T-Bearing Width: |
1.875 |
47.625 |
|
Bearing Type: |
Roller |
|
|
Bearing Material: |
Chrome Steel |
|
|
Cage Material: |
Stamped Steel |
|
|
Precision: |
Standard Precision |
|
|
Load Direction: |
Combined Radial and Thrust |
|
|
Country of Origin: |
China |
|
|
HS Code: |
8482200000 |
|
|
Payment Term: |
by T/T or Alipay |
|
|
Delivery Term: |
by sea or air. |
|
|
Delivery Time: |
2-3 days for stock, 25-30 days for bulk production. |
|
|
Mail: [email protected] |
||
|
Whatsapp: +8618062246726 |
||
|
Wechat: +8618062246726 |
||
Applicatioins: Gearing Systems and Transmissions, Thermal Power Coal Transporters, Port Equipment, Rubber and other Industrial applications, Machine Tool Spindles, Gear Reducer, Automotive Drive Axle, Aircraft wheels, Agricultural Wheels, Tensioning Roller, Raking Machine, Construction and Mining Equipment, Railroad Axle-box, etc.
Below are more tapered roller bearings we are offering:
26880/26822, 25580/25521, 66187/66462, 4595/4535, HM803146/HM803110, HM905843/HM905810, 33889/33821, 33225/33462, 26881/26822, 25580/25522, 72187/72487, 539/532, HM803146/HM803111, JLM603048/JLM903013, 33889/33822, 66225/66462, U399/U365, 3578/3520, 72188/72787, 55212/55434, 4388/4335, 358/354, 3780/3732, 39580/39528, 3382/3339, 355/354A, HM804848/HM804810, 55212/55437, M903345/M903310, 367/362, 28580/28520, 623/612, 26881/26820, 355A/354A, HM804848/HM804811, 539/532A, 46162/46368, 376/374, 28580/28526, 66587/66520, 3382/3320, 3578/3525, HM804849/HM804810, 39578/39520, HM804840/HM804810, T7FC045, 49585/49520, 72225/72487, 3382/3331, 3578/3526, BT1B332987, 66212/66462, 53162/53375, JW4549/JW4510, 529/522, 555S/552A, 3386/3320, NP910415/M804010, 3781/3720, 621/612, HM903244/HM903210, T2ED045, 45284/45220, 65225/65500, 3382/3328, HM803149/HM803110, 5395/5335, 66584/66520, HM903245/HM903210, 17887/17831, 45285/45220, 78225/78551, 44158/44348, 355X/352, HM807044/HM807010, 5578/5535, 53162/53387, 3586/3520, 455/453, 78225/78571, 28159/28317, 355/352, HM807044/HM807011, 72212/72487, 526/522, 3586/3525, 59200/59412, 6455/6420, 28158/28300, HM803149/HM803112, 65390/65320, 557/552, HM807035/HM807010, LM102949/LM102910, 59201/59412, 388A/382A, 344/332 , 3782/3720, HH506348/HH506310, 65212/65500, HM807035/HM807011, LM603049/LM603011, HM807046/HM807010, 3981/3920, 28158/18316, 46175/46368, LM404947/LM104910, 6280/6220, 4395/4335, LM603049/LM603012, HM807046/HM807011, 3981/3926.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
Share this product to:
Let more people see your product
-
- 47T402821 Tapered Roller Bearing (Size: 200x280x206mm)
- 47T402821 Tapered Roller Bearing, Four Row, High Load Capacity, High Speed, Low
-
- 2975/2924 (Size:1 3/4x3.3465x1 inch) Tapered Roller Bearing
- 2975/2924 Single Row Tapered Roller Bearing (Imperial) Cone Part Number: 2975 Cup Part
-
- 07087X/07205 Tapered Roller Bearing (Size: 7/8x2.0472x0.591 inch)
- 07087X/07205 Single Row Tapered Roller Bearing (Imperial) Cone Part Number: 07087X Cup Part Number:
-

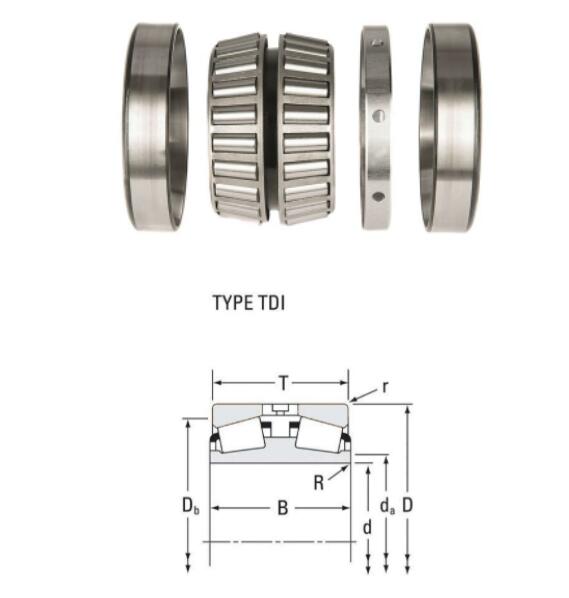

- 95474D/95905 TDI Type Tapered Roller Bearing 120.65x230x139.697mm
