708C Angular Contact Ball Bearing (Size: 8x22x7mm)
The 708C bearing is a Angular Contact Ball Bearings with an inner diameter of 8 mm , an outer diameter of 22 mm, a width of 7 mm. Its dynamic radial rated load is approximately 4.45 (KN), its static radial rated load is approximately 1.54 (kN). Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
Application: Machine tool spindles, High-speed micro motors, Robotics and automation components, Precision instrumentation
708C Angular Contact Ball Bearing, High Precision, High Speed and High Load Carrying Capacity.
Size: 8x22x7mm
Inner Diameter (d): 8 mm
Outer Diameter (D): 22 mm
Width (B): 7 mm
Contact Angle: 15° degree
HS Code: 8482103090
|
Angular Contact Ball Bearing |
|||||||||||
|
Part No. |
Boundary Dimensions |
Basic Loading Ratings (kN) |
Contact Angle (°) |
Limiting Speeds (min) |
Mass |
||||||
|
d |
D |
B |
r (min.) |
r1 (min.) |
Cr (Dynamic) |
Cor (Static) |
Grease |
Oil |
kg |
||
|
708C |
8 |
22 |
7 |
0.3 |
0.15 |
4.45 |
1.54 |
15 |
77000 |
117000 |
0.012 |
Contact Angle:
Standard Series: C: 15°, A5: 25°, A: 30°
Robust Series: BNR, BNRD: 18°, BER, BERD: 25°, BSR: 15°
Material:
Standard Series:
No Code: Steel Ball SN24: Ceramic Ball
Robust Series:
S: Bearing Steel Inner, Outer Ring & Ball
E: Bearing Steel Inner, Outer Ring & Ultra Long Life Steel Rolling Elements
H: Bearing Steel Inner &Outer Ring, Ceramic Balls
J: Ultra Long Life Steel Inner &Outer Ring, Ceramic Balls
X: High Resistant Steel Inner &Outer Ring, Ceramic Balls
XE: High Resistant Steel Inner &Outer Ring, Ceramic Balls
Cage:
TYN: Polyamide Resin
TR, T, TX, TA: Phenolic Resin
TSR: PPS Resin
MY: Brass
Common Applications:
Machine tool spindles
High-speed micro motors
Robotics and automation components
Precision instrumentation
Angular contact ball bearings feature offset inner and outer raceways designed to handle combined loads (simultaneous radial and axial forces). Because a radial load creates an axial force, they must be assembled with a preload and are typically mounted in pairs, trios, or quartets to ensure structural rigidity.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
Share this product to:
Let more people see your product
-
- NKA047AR0 (Alt P/N: KA047AR0) Size:121x133.35x6.35 mm Thin Section Angular Contact Ball Bearing
- NKA047AR0 Thin Section Angular Contact Ball Bearing Size: 121x133.35x6.35mm (4.75x5.25x0.25 inch) Alternative P/N: KYA047
-
- NKD042AR0 (Alt P/N:KD042AR0) Size:4.25x5.25x0.5 inch Angular Contact Ball Bearing
- NKD042AR0 Thin Section Angular Contact Ball Bearing Inner Dia.x Outer Dia.x Cross Section:
-
- 234944M (Size: 220x300x96mm) High Precision Angular Contact Thrust Ball Bearing
- 234944M Double Direction Angular Contact Thrust Ball Bearing for use in machine
-
- 5218ZZ Angular Contact Ball Bearing 90x160x52.388mm
- 5218ZZ Angular Contact Ball Bearing / Double Row Angular Contact Ball Bearing Bearing
-

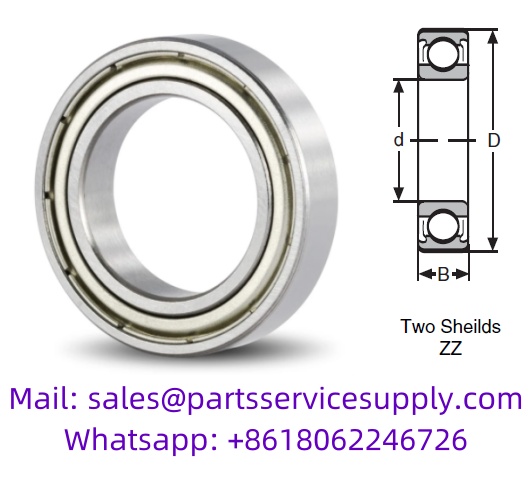

- 61822-ZZ (Alt P/N: 1822SFFP, 61822-2ZY) Deep Groove Ball Bearing
