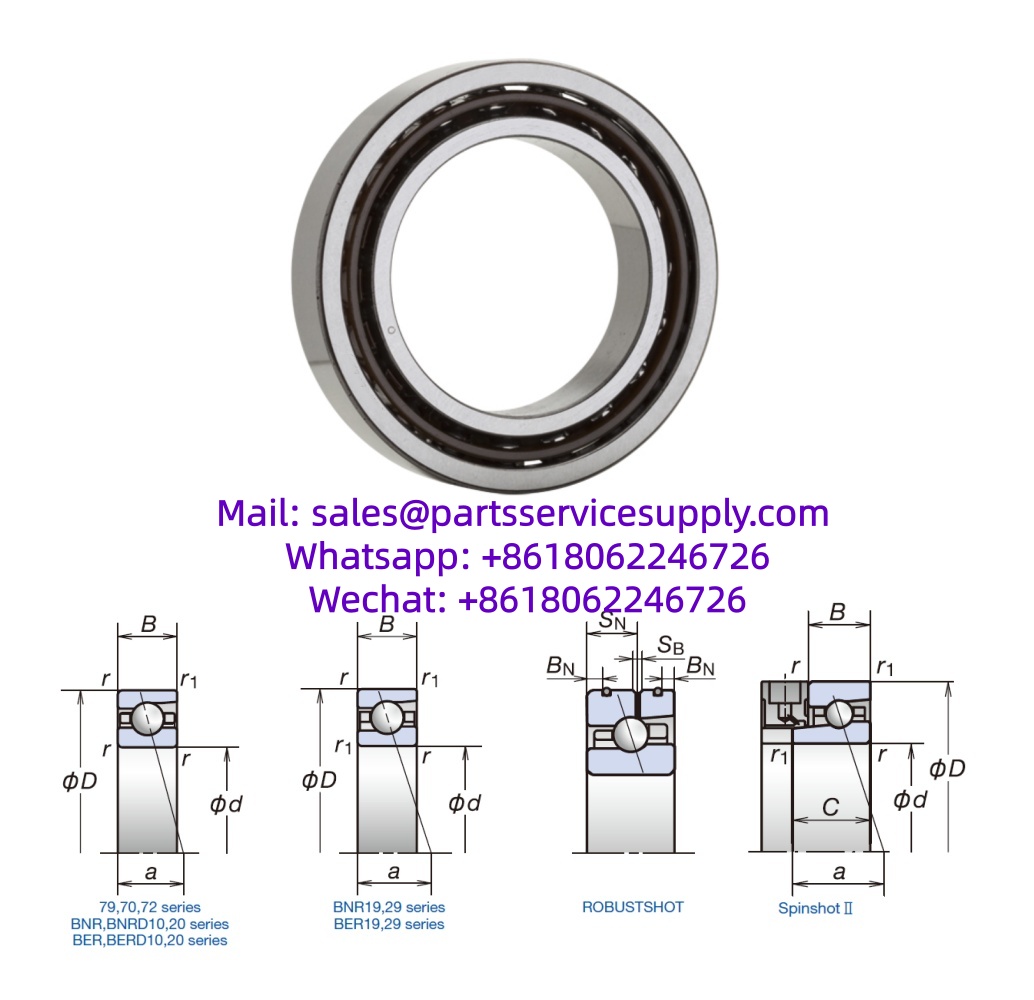

7010C Angular Contact Ball Bearing (Size: 50x80x16mm)

🔍

7010C

Bore Diameter:50 mm

Outside Diameter:80 mm

Width:16 mm

Weight:0.259 kg

Min. Order:1 Piece

The 7010C bearing is a Angular Contact Ball Bearings with an inner diameter of 50 mm , an outer diameter of 80 mm, a width of 16 mm. Its dynamic radial rated load is approximately 32.5 (kN), its static radial rated load is approximately 21.9 (kN). Open type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Application: Machine tool spindles, High-speed micro motors, Robotics and automation components, Precision instrumentation

Dimensions:

Inside Diameter:

50 mm

Outside Diameter:

80 mm

Thickness:

16 mm

Weight:

0.259 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

32.5 (kN)

Static load Capacity, Radial (Cor):

21.9 (kN)

Reference speed (Grease rpm):

17700

Limiting speed (Oil rpm):

27000

Specifications:

HS Code:

8482103090

Structure:

Ball Bearing

Number of Rows:

Single

Demensions:

50x80x16

Brand:

Neutral Product

Bearing Material:

Bearing Steel

Seals Type:

Open

Contact Angle:

Bore Type:

Cylindrical

System of Measurement:

Metric

Rolling Element:

Ball

Closure Type:

Open

Transaction Information:

Transport Package:

Standard Export Package

Shipping Ways:

by Sea or Air

Country of Origin:

China

Stock:

1000 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

7010C Angular Contact Ball Bearing, High Precision, High Speed and High Load Carrying Capacity.

Size: 50x80x16mm

Inner Diameter (d): 50 mm

Outer Diameter (D): 80 mm

Width (B): 16 mm

Contact Angle: 15° degree

HS Code: 8482103090

Angular Contact Ball Bearing

Part No.

Boundary Dimensions

Basic Loading Ratings (kN)

Contact Angle (°)

Limiting Speeds (min)

Mass

r (min.)

r1 (min.)

Cr (Dynamic)

Cor (Static)

Grease

Oil

7010C

0.6

32.5

21.9

17700

27000

0.259

Contact Angle:

Standard Series: C: 15°, A5: 25°, A: 30°

Robust Series: BNR, BNRD: 18°, BER, BERD: 25°, BSR: 15°

Material:

Standard Series:

No Code: Steel Ball SN24: Ceramic Ball

Robust Series:

S: Bearing Steel Inner, Outer Ring & Ball

E: Bearing Steel Inner, Outer Ring & Ultra Long Life Steel Rolling Elements

H: Bearing Steel Inner &Outer Ring, Ceramic Balls

J: Ultra Long Life Steel Inner &Outer Ring, Ceramic Balls

X: High Resistant Steel Inner &Outer Ring, Ceramic Balls

XE: High Resistant Steel Inner &Outer Ring, Ceramic Balls

Cage:

TYN: Polyamide Resin

TR, T, TX, TA: Phenolic Resin

TSR: PPS Resin

MY: Brass

Common Applications:

Machine tool spindles

High-speed micro motors

Robotics and automation components

Precision instrumentation

Angular contact ball bearings feature offset inner and outer raceways designed to handle combined loads (simultaneous radial and axial forces). Because a radial load creates an axial force, they must be assembled with a preload and are typically mounted in pairs, trios, or quartets to ensure structural rigidity.

All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more bearings, please feel free to mail us at [email protected] or contact us by Wechat or Whatsapp at +8618062246726.
