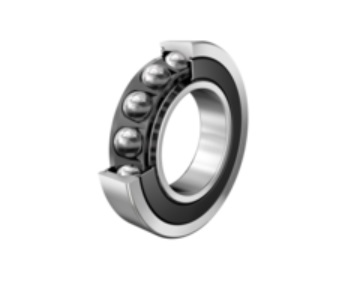

7007-B-2RS-TVP-P5-UO Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

7007-B-2RS-TVP-P5-UO

Bore Diameter:35 mm

Outside Diameter:62 mm

Width:14 mm

Weight:0.14 kg

Min. Order:1 Piece

The 7007-B-2RS-TVP-P5-UO

The 7007-B-2RS-TVP-P5-UO bearing is a Angular contact ball bearings, single row with an inner diameter of 35 mm , an outer diameter of 62 mm, a width of 14 mm. It typically uses P5 grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 24256 N, its static radial rated load is approximately 17151 N. 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 7007-B-2RS-TVP-P5-UO,7007B.2RS.TVP.P5.UO

Dimensions:

Inside Diameter:

35 mm

Outside Diameter:

62 mm

Thickness:

14 mm

Weight:

0.14 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

24256 N

Static load Capacity, Radial (Cor):

17151 N

Fatigue Load Limit, Radial:

1194 N

Limiting speed (Oil rpm):

5974

Specifications:

Structure:

Angular contact ball bearings, super-precision

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

2RS = Contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

70..-B-XL-2RS-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	7007-B-2RS-TVP-P5-UO
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	70..-B-XL-2RS-TVP
X-Life	XL long life design
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	7007-B-2RS-TVP-P5-UO
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Equivalent	7007-B-2RS-TVP-P5-UO,7007B.2RS.TVP.P5.UO
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RS = Contact seal on both sides
Bearing pair	UO = Universal design for mounting in pairs, bearing pair is clearance-free in O and X arrangement
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.14
Reference From	FAG 7007-B-2RS-TVP-P5-UO
Dimensions
d φ Inside [inch]	1.378
D Φ Outside [inch]	2.441
B Width [inch]	0.551
r(min.) [inch]	0.039
r₁(min.) [inch]	0.024
D₁ [inch]	2.101
D₂ [inch]	2.126
D₃ [inch]	2.320
d₁ [inch]	1.851
d₂ [inch]	1.718
a [inch]	1.098
Performance
C_r Radial Dynamic [N]	24256
C_0r Radial static [N]	17151
C_ur Radial Fatigue [N]	1194
n_G Limiting speed (oil) [r/min]	5974
Mounting dimensions
d_a(min.) [inch]	1.559
D_a(max.) [inch]	2.260
D_b(max.) [inch]	2.315
r_a(max.) [inch]	0.039
r_a1(max.) [inch]	0.024
Tolerance for axial clearance or preload per set - Tol(+) [µm]	6
