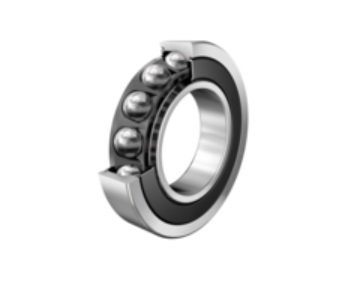

7005B.2RS.TVP Angular Contact Ball Bearings, Single Row, Plastic Cage

🔍

7005B.2RS.TVP

Bore Diameter:25 mm

Outside Diameter:47 mm

Width:12 mm

Weight:0.075 kg

Min. Order:1 Piece

The 7005B.2RS.TVP

The 7005B.2RS.TVP bearing is a Angular contact ball bearings, single row with an inner diameter of 25 mm , an outer diameter of 47 mm, a width of 12 mm. It typically uses PN grade precision tolerances and bearing steel rings, bearing steel rolling mlement. Its dynamic radial rated load is approximately 15995 N, its static radial rated load is approximately 9878 N. 2RS = Contact seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Interchange code: 7005-B-2RS-TVP,7005B.2RS.TVP

Dimensions:

Inside Diameter:

25 mm

Outside Diameter:

47 mm

Thickness:

12 mm

Weight:

0.075 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

15995 N

Static load Capacity, Radial (Cor):

9878 N

Fatigue Load Limit, Radial:

678 N

Limiting speed (Oil rpm):

8188

Specifications:

Structure:

Angular Contact Ball Bearings

Number of Rows:

single

Precision Rating:

Bearing Material:

bearing steel

Cage Type:

TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)

Seals Type:

2RS = Contact seal on both sides

Rolling Mlement Material:

bearing steel

Contact Angle:

Bore Type:

Z = Cylindrical Bore

Operating Temperature:

-20 to 100 °C

Series:

70..-B-XL-2RS-TVP

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

Part Number	7005B.2RS.TVP
Design Type	B = Modified internal construction
Bearing Type	Angular contact ball bearings, single row
Series	70..-B-XL-2RS-TVP
X-Life	XL long life design
Contact angle - α [°]	40
Rows NO.	single
Manufacturer Part Code	7005-B-2RS-TVP
Cage	TVP = Solid cage made from glass fibre reinforced polyamide (plastic cage)
Equivalent	7005-B-2RS-TVP,7005B.2RS.TVP
Lubricant	GA14 = Ball bearing grease, low noise
Seal type	2RS = Contact seal on both sides
Heat stabilization	S0 = up to 150°
m Weight [kg]	0.075
Reference From	FAG 7005B.2RS.TVP
Dimensions
d φ Inside [inch]	0.984
D Φ Outside [inch]	1.850
B Width [inch]	0.472
r(min.) [inch]	0.024
r₁(min.) [inch]	0.012
D₁ [inch]	1.568
D₂ [inch]	1.594
D₃ [inch]	1.764
d₁ [inch]	1.336
d₂ [inch]	1.241
a [inch]	0.846
Performance
C_r Radial Dynamic [N]	15995
C_0r Radial static [N]	9878
C_ur Radial Fatigue [N]	678
n_G Limiting speed (oil) [r/min]	8188
Mounting dimensions
d_a(min.) [inch]	1.110
D_a(max.) [inch]	1.724
D_b(max.) [inch]	1.772
r_a(max.) [inch]	0.024
r_a1(max.) [inch]	0.012
