688TD/674 TDI Type Tapered Roller Bearing 100.211x171.45x95.25mm
The 688TD/674 bearing is a Tapered Roller Bearings with an inner diameter of 100.211 mm , an outer diameter of 171.45 mm, a width of 95.25 mm. together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.
688TD/674 Tapered Roller Bearings
Bearing Type: TDI (Tapered Double Inner)
Size: 3.9453x6.75x3.75 inch (100.211x171.45x95.25 mm)
Inner Diameter: 3.9453 inch (100.211 mm)
Outer Diameter: 6.75 inch (171.45 mm)
Thickness / Width: 3.75 inch (95.25 mm)
|
Dimensions: |
|
|
d - Bore |
3.9453 inch (100.211 mm) |
|
D - Cup Outer Diameter |
6.75 inch (171.45 mm) |
|
B - Double Cone Width |
3.75 inch (95.25 mm) |
|
C - Cup Width |
1.1875 inch (30.163 mm) |
|
T - Bearing Width across Cups |
3.75 inch (95.25 mm) |
|
Bearing Weight |
|
|
8.1 kgs |
|
|
Application: |
|
|
Agriculture, construction and mining equipment, sports robot combat, axle systems, gearbox, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, and etc. |
|
|
Packing Type: |
|
|
Carton Boxes + Plywood Case |
|
|
Delivery Time: |
|
|
1-2 working days for stock; 25-35 working days for bulk production. |
|
|
Payment Term: |
|
|
by T/T / Alipay |
|
|
Delivery Term: |
|
|
FOB / CIF / CFR by Sea, by Air, or by International Express. |
|
TDI Bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
All the bearings we are offering are direct factory price, fast delivery, perfect quality. For more detail information of 688TD/674 bearing, please feel free to mail us at [email protected], or contact us by Wechat or Whatsapp at +8618062246726.
Share this product to:
Let more people see your product
-
- 25580/25519 (Bore:1 3/4xOD:3.25xT:0.9375 inch) Imperial Tapered Roller Bearing
- 25580/25519 Single Row Tapered Roller Bearing (Imperial) Cone Part Number: 25580 Cup Part
-
- 26131/26282D Tapered Roller Bearing Size 1 5/16x2.8125x1.6875 Inch
- 26131/26282D Tapered Roller Bearing, TDO Type, Double Row, Inch Size. Size (Inner Dia
-
- 37256X Tapered Roller Bearing (Size: 280x395x288mm)
- 37256X Tapered Roller Bearing, Four Row, High Load Capacity, High Speed, Low
-

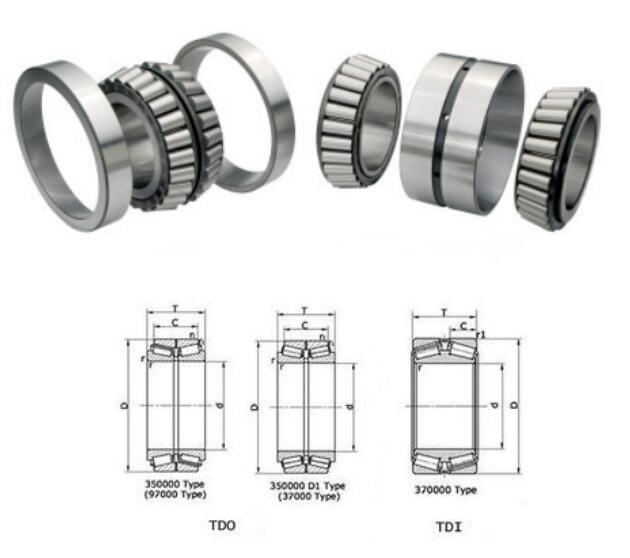

- 3506/1092X4/HC (ID:1092.2xOD:1320.8xT:200mm) Double Row Tapered Roller Bearing
