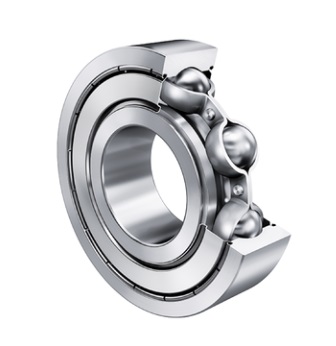

6304-C-2Z-L038-C3>V Deep Groove Ball Bearings 2Z Design, Self-retaining, Gap Seals

🔍

6304-C-2Z-L038-C3>V

Bore Diameter:20 mm

Outside Diameter:52 mm

Width:15 mm

Weight:0.148 kg

Min. Order:1 Piece

The 6304-C-2Z-L038-C3>V Single-row deep groove ball bearings are widely used in various rotating machinery, such as: electric motors (general-purpose motors, household appliances), automotive wheel hubs, industrial gearboxes, agricultural machinery, pumps and compressors, conveying equipment, and power tools.

The 6304-C-2Z-L038-C3>V bearing is a Deep groove ball bearings 2Z design, self-retaining, Gap seals with an inner diameter of 20 mm , an outer diameter of 52 mm, a width of 15 mm. It typically uses Class6 (P6) grade precision tolerances and GCr15SiMn rings, Its dynamic radial rated load is approximately 18417 N, its static radial rated load is approximately 7711 N. It uses C3 standard radial clearance, 2Z = Gap seal on both sides type, together determine its load-bearing capacity, rotational accuracy, and applicable working conditions.

Dimensions:

Inside Diameter:

20 mm

Outside Diameter:

52 mm

Thickness:

15 mm

Weight:

0.148 KG

Performance Data:

Dynamic load Capacity, Radial (Cr):

18417 N

Static load Capacity, Radial (Cor):

7711 N

Fatigue Load Limit, Radial:

519 N

Reference speed (Grease rpm):

16069

Limiting speed (Oil rpm):

18660

Specifications:

Old Designations:

6304C.2Z.L038.C3>V

Structure:

Deep Groove Ball Bearings

Number of Rows:

one

Radial Clearance Trade No.:

Precision Rating:

Class6 (P6)

Bearing Material:

GCr15SiMn

Cage Type:

JN = Stamping steel cage

Seals Type:

2Z = Gap seal on both sides

Bore Type:

Z = Cylindrical bore

Operating Temperature:

-20 to 120 °C

Series:

63..-C-2Z

Rolling Element:

balls

Transaction Information:

Transport Package:

Standard Export Package

Service:

7*24 hour

Shipping Ways:

by Sea or Air

Country of Origin:

china

Stock:

200 Piece

Port:

Tianjin, Shanghai, Shenzhen, Guangzhou or Qingdao

Payment term:

by T/T in advance

Delivery time:

2-3 days for stock, 25-30 days for bulk production

Detailed description

6304-C-2Z-L038-C3>V bearings ( 20 mm x 52 mm x 15 mm) have the advantages of simple structure, ability to withstand radial and bidirectional axial loads, low friction, and high speed, it is suitable for high-speed, low-noise applications, and are therefore widely used in the Motors, home appliances, automobiles, pumps, compressors, conveying equipment and general industrial machinery.

Part Number	6304-C-2Z-L038-C3>V
Reference From	FAG 6304-C-2Z-L038-C3>V
Bearing Type	Deep groove ball bearings 2Z design, self-retaining, Gap seals
Series	63..-C-2Z
Internal design	C = Generation C
Sealing	2Z = Gap seal on both sides
Cage	JN = Stamping steel cage
Radial internal clearances	C3
Heat stabilization	SN = (up to 120 °C)
Lubricant	L038 = Grease (L038)
Weight [lb]	0.326
C_r Radial Dynamic [lbf]	4140
C_0r Radial static [lbf]	1733
C_ur Radial Fatigue [lbf]	116
n_B Reference speed [rpm]	16069
n_G Limiting speed [rpm]	18660
Operating temperature - T(min) [°C]	-20
Operating temperature - T(max) [°C]	120
d φ Inside [inch]	0.787
D Φ Outside [inch]	2.047
B Width [inch]	0.591
d₂ [inch]	1.089
D₂ [inch]	1.737
r(min.) [inch]	0.043
D₁ [inch]	1.660
d₁ [inch]	1.135
Mounting dimensions
d_a(min.) [inch]	1.063
D_a(max.) [inch]	1.772
r_a(max.) [inch]	0.039
Coefficient - F₀ [inch]	12.3

The 6304-C-2Z-L038-C3>V Single-row deep groove ball bearings mainly consist of an inner ring, outer ring, steel balls, and a cage. The raceways are deep grooves, with the steel balls making four-point contact with the raceways. The inner and outer rings can be separable or integrated. They are available in various forms, including open, with dust covers, and with seals.

Single-row deep groove ball bearings have a simple structure and are the most widely used. They can simultaneously withstand radial loads and bidirectional axial loads, making them suitable for high-speed operation. They have a low coefficient of friction, low noise, and are easy to install and maintain. Versions with seals or dust covers effectively prevent contaminant intrusion and are suitable for various operating conditions.
